5052 aluminum is one of the highest strength alloys among non-heat-treatable grades, known for its excellent formability and durability. It also exhibits higher fatigue strength compared to most aluminum alloys.
Additionally, 5052 has exceptional resistance to marine atmospheres and saltwater corrosion, making it ideal for harsh environments. This alloy can be easily welded using a variety of techniques.
Specifications of 5052 marine grade aluminum plate sheet
- ASTM -B209
- AMS-QQ-A-250/8
- AMS 4015 5052-T0
- AMS 4016 5052-H32
- AMS 4017 5052-H34
- EN 485-2
- EN 573-3
- EN 1386
We also hold certifications from classification societies such as CCS, DNV, NK, ABS, BV, LR, and KR.
5052 aluminum sheet plate popular stock sizes
We offer a variety of 5052 marine grade aluminum products, including 5052 marine tread plates, 5052 circle cut plates, ultra-high precision aluminum alloy plates for precision machining, and marine honeycomb panel aluminum foil.
5052 marine grade aluminum sheet plate popular stock sizes
| Description | Thickness | Width | Length | Surface |
| 1/4" (T) 5052-H32 Aluminum Plates | 1/4" | 36" - 60" | 96" - 144" | Mill Finish/Bright |
| 3/16" (T) 5052-H32 Aluminum Plates | 3/16" | 36" - 60" | 96" - 144" | Mill Finish/Bright |
| 5/16" (T) 5052-H32 Aluminum Plates | 5/16" | 36" - 60" | 96" - 144" | Mill Finish/Bright |
| 3/8" (T) 5052-H32 Aluminum Plates | 3/8" | 36" - 60" | 96" - 144" | Mill Finish/Bright |
| 1/2" (T) 5052-H32 Aluminum Plates | 1/2" | 36" - 60" | 96" - 144" | Mill Finish/Bright |
| 5/8" (T) 5052-H32 Aluminum Plates | 5/8" | 36" - 60" | 96" - 144" | Mill Finish/Bright |
| 3/4" 5052-H32 Aluminum Plates | 3/4" | 36" - 60" | 96" - 144" | Mill Finish/Bright |
| 7/8" (T) 5052-H32 Aluminum Plates | 7/8" | 36" - 60" | 96" - 144" | Mill Finish/Bright |
| 0.02" (T) 5052-H32 Aluminum Sheets | 0.02" | 36" - 60" | 96" - 144" | Mill Finish/Bright |
| 0.025" (T) 5052-H32 Aluminum Sheets | 0.025" | 36" - 60" | 96" - 144" | Mill Finish/Bright |
| 0.025" (T) 5052-O Aluminum Sheets | 0.025" | 36" - 60" | 96" - 144" | Mill Finish/Bright |
| 0.032" (T) 5052-H32 Aluminum Sheets | 0.032" | 36" - 60" | 96" - 144" | Mill Finish/Bright |
| 0.032" (T) 5052-O Aluminum Sheets | 0.032" | 36" - 60" | 96" - 144" | Mill Finish/Bright |
| 0.040" (T) 5052-H32 Aluminum Sheets | 0.040" | 36" - 60" | 96" - 144" | Mill Finish/Bright |
| 0.040" (T) 5052-O Aluminum Sheets | 0.040" | 36" - 60" | 96" - 144" | Mill Finish/Bright |
| 0.050" (T) 5052-H32 Aluminum Sheets | 0.050" | 36" - 60" | 96" - 144" | Mill Finish/Bright |
| 0.050" (T) 5052-O Aluminum Sheets | 0.050" | 36" - 60" | 96" - 144" | Mill Finish/Bright |
| 0.063" (T) 5052-H32 Aluminum Sheets | 0.063" | 36" - 60" | 96" - 144" | Mill Finish/Bright |
| 0.063" (T) 5052-O Aluminum Sheets | 0.063" | 36" - 60" | 96" - 144" | Mill Finish/Bright |
| 0.08" (T) 5052-H32 Aluminum Sheets | 0.08" | 36" - 60" | 96" - 144" | Mill Finish/Bright |
| 0.08" (T) 5052-O Aluminum Sheets | 0.08" | 36" - 60" | 96" - 144" | Mill Finish/Bright |
| 0.09" (T) 5052-H32 Aluminum Sheets | 0.09" | 36" - 60" | 96" - 144" | Mill Finish/Bright |
| 0.1" (T) 5052-H32 Aluminum Sheets | 0.1" | 36" - 60" | 96" - 144" | Mill Finish/Bright |
| 0.125" (T) 5052-H32 Aluminum Sheets | 0.125" | 36" - 60" | 96" - 144" | Mill Finish/Bright |
| 0.160" (T) 5052-H32 Aluminum Sheets | 0.160" | 36" - 60" | 96" - 144" | Mill Finish/Bright |
| 0.185" (T) 5052-H32 Aluminum Sheets | 0.185" | 36" - 60" | 96" - 144" | Mill Finish/Bright |
| 0.185" (T) 5052-O Aluminum Sheets | 0.185" | 36" - 60" | 96" - 144" | Mill Finish/Bright |
| 0.190" (T) 5052-H32 Aluminum Sheets | 0.190" | 36" - 60" | 96" - 144" | Mill Finish/Bright |
| 0.249" (T) 5052-H32 Aluminum Sheets | 0.249" | 36" - 60" | 96" - 144" | Mill Finish/Bright |
Marine 5052 aluminum tread checkered plates popular stock sizes
| Description | Thickness | Temper |
| 0.125" 5052-H32 Diamond Tread Plate | 0.125" | H32 |
| 0.125" 5052-H32 5-Bar Tread Plate | 0.125" | H32 |
| 0.188" 5052-H32 Diamond Tread Plate | 0.188" | H32 |
| 0.188" 5052-H32 5-Bar Tread Plate | 0.188" | H32 |
| 0.250" 5052-H32 5-Bar Tread Plate | 0.250" | H32 |
5052 Circle Cut Plate popular stock sizes
| Description | Thickness | Diameter |
| 1/4" (T) 5052-H32 Circle Cut Plate | 1/4" | 10'' - 60'' |
| 3/16" (T) 5052-H32 Circle Cut Plate | 3/16" | 10'' - 60'' |
| 5/16" (T) 5052-H32 Circle Cut Plate | 5/16" | 10'' - 60'' |
| 3/8" (T) 5052-H32 Circle Cut Plate | 3/8" | 10'' - 60'' |
| 1/2" (T) 5052-H32 Circle Cut Plate | 1/2" | 10'' - 60'' |
| 5/8" (T) 5052-H32 Circle Cut Plate | 5/8" | 10'' - 60'' |
| 3/4" 5052-H112 Circle Cut Plate | 3/4" | 10'' - 60'' |
| 7/8" (T) 5052-H112 Circle Cut Plate | 7/8" | 10'' - 60'' |
| 1" (T) 5052-H112 Circle Cut Plate | 1" | 10'' - 60'' |
5052 Medical Marine Ultra-High Precision Aluminum Plate
| Description | Thickness | Width x Height |
| 4mm 5052 High Precision Aluminum Plates | 4mm | 1525 mm × 3050 mm |
| 6mm 5052 High Precision Aluminum Plates | 6mm | 1525 mm × 3050 mm |
| 10mm 5052 High Precision Aluminum Plates | 10mm | 1525 mm × 3050 mm |
| 15mm 5052 High Precision Aluminum Plates | 15mm | 1525 mm × 3050 mm |
| 20mm 5052 High Precision Aluminum Plates | 20mm | 1525 mm × 3050 mm |
| 30mm 5052 High Precision Aluminum Plates | 30mm | 1525 mm × 3050 mm |
| 40mm 5052 High Precision Aluminum Plates | 40mm | 1525 mm × 3050 mm |
Chemical composition of 5052 marine grade aluminum plate
| Chemical Element | % Present |
| Si | 0.25 max |
| Fe | 0.40 |
| Cu | 0.10 |
| Mn | 0.10 |
| Mg | 2.2 - 2.8 |
| Cr | 0.15 - 0.35 |
| Zn | 0.10 |
| Other (Each) | 0.0 - 0.05 |
| Others (Total) | 0.0 - 0.15 |
| Aluminium (Al) | Balance |
Mechanical properties of 5052 aluminium marine sheet plate
| Temper | Thickness (mm) | Tensile Strength MPa | Yield Strength MPa | Elongation % | Hardness HB |
| O, H111 | 0.2 - 80 | Min. 165 Max. 215 | Min. 65 | 12 - 19 | 47 |
| H22, H32 | 0.2 - 40 | Min. 210 Max. 260 | Min. 130 | 5 - 12 | 61 |
| H24, H34 | 0.2 - 25 | Min. 230 Max. 280 | Min. 150 | 4 - 9 | 67 |
| H26, H36 | 0.2 - 6 | Min. 250 Max. 300 | Min. 180 | 3 - 6 | 74 |
| H28, H38 | 0.2 - 3 | Min. 270 | Min. 210 | -3 - 4 | 81 |
5052 Aluminum Sheet is also available in special conditions like F, H116, H112 and H141, please contact us if needed.
5052 Aluminum Sheet Physical Properties
| Physical Property | Value |
| Density | 2.68 g/cm³ |
| Melting Point | 650 °C |
| Thermal Expansion | 24 x10^-6 /K |
| Modulus of Elasticity | 68 GPa |
| Thermal Conductivity | 140 W/m.K |
| Electrical Resistivity | 35 % IACS |
5052 aluminum sheet machining recommendations
5052 aluminum alloy has excellent machinability.
- Machining is easier in a hardened state than in an annealed state, and the product quality is better when machined in the hardened state.
- Oil lubricants should be used during machining, but very light cuts can be done dry.
- The alloy is easily cold worked and can be shaped through drawing or spinning. Continuous cold working reduces formability.
- The alloy can be forged (hot worked) in the temperature range of 950°F to 500°F.
5052 aluminum sheet welding recommendations
- Preferred methods: TIG (Tungsten Inert Gas) welding or MIG (Metal Inert Gas) welding are recommended.
- Surface preparation: Ensure the welding area is clean, free from oil and oxide layers.
- Filler material: Use filler wire that matches 5052 alloy, such as 4047 or 5356.
- Parameter adjustment: Control proper welding current and speed to avoid overheating.
- Shielding gas: Use pure argon or an argon-helium gas mixture.
- Post-weld heat treatment: Apply to reduce cracking risks and improve overall weld quality.
- Quality inspection: Conduct a final inspection to ensure there are no defects.
Bending recommendations for 5052 Aluminum Sheet
- Temper: H32 for balance of strength and formability; O temper for easier large-angle bends.
- Bend Radius: Minimum 2x material thickness to avoid cracks. Pressure: Apply even pressure to protect surface.
- Tooling: Use padded tools to prevent scratches.
- Springback: Slight over-bending compensates for springback.
- Pre/Post-Treatment: Clean surface and consider post-bend heat treatment for stress relief.
Alternatives to 5052 Aluminum
- For a brighter appearance, especially in tread plate applications, consider 3003 alloy.
- For bright (decorative) anodizing, consider 5005 alloy.
- For higher strength or better corrosion resistance, especially for hull applications, consider 5083 alloy.
- Additionally, in Australia and New Zealand, using 5251 alloy as a substitute for 5052 has become common. The composition and properties of these two alloys are very similar, making them functionally interchangeable in many cases.
Advantages of Chalco 5052 aluminum marine plate
Light and high strength: 5052 ship plate is a kind of light aluminum alloy plate, with high strength. The 5052 metal plate has a lower density than ordinary steel plate, so it can reduce the weight of the hull and improve the load capacity and fuel efficiency of the ship.
Strong corrosion resistance: 5052 marine ship plate has good corrosion resistance, especially in seawater environment. Aluminum alloy has the property of self-protection, forming a dense oxide film on the surface, which can effectively prevent further corrosion. This enables 5052 board to maintain good durability even when exposed to the Marine environment for a long time.
Good machinability: 5052 marine ship sheet has excellent machinability, can be used for various processing and forming operations, such as bending, cutting, welding, etc. This allows the 5052 plate to be customized according to the needs of the ship's design, adapting to the hull needs of different shapes and structures.
High impact resistance: the 5052 marine grade series aluminum has high impact resistance and can maintain the integrity of the structure when subjected to impact and extrusion pressure. This characteristic makes the ship better able to resist the influence of external forces and improve the safety of the hull in the harsh Marine environment, such as wave impact.
Recyclable: 5052 marine grade aluminum sheet is a recyclable material. Aluminum alloy has good recyclability, which can reduce resource consumption and environmental pollution through recycling.
In general, 5052 marine grade aluminum plate has become one of the commonly used materials in ship construction due to its characteristics of light weight, high strength, corrosion resistance, good machinability, high impact resistance and recyclability.
Transportation and packaging: consult with suppliers on transportation and packaging arrangements. To ensure that the 5052 board can be safely transported to its destination and is properly protected en route.

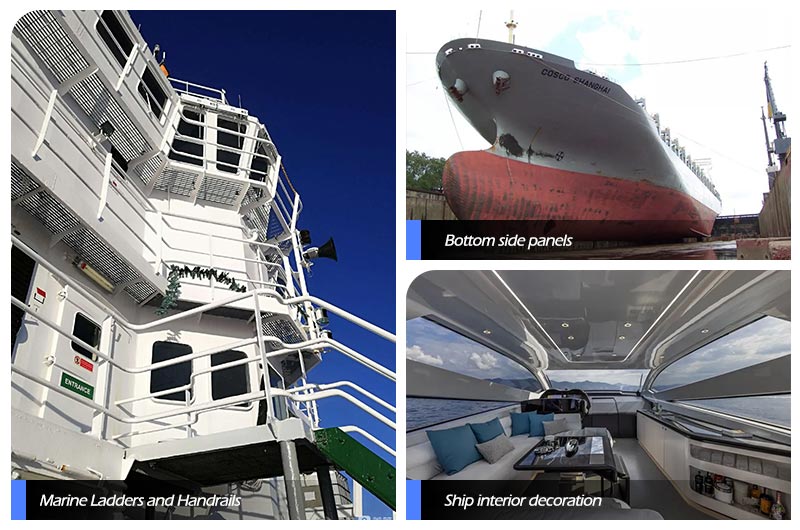

Applications of Chalco marine grade aluminum sheets 5052
Hull structure: marine grade 5052 aluminum plate can be used for the main structural parts of the hull, such as hull, bottom, cabin wall, ship bulkhead, etc. It has the characteristics of light weight and high strength, can reduce the weight of the ship, improve the load capacity and fuel efficiency of the ship.
Deck covering: 5052 0 sheets can be used as a covering material for ship decks. A deck is a platform on a ship that carries crew, cargo, and other equipment and structures. The 5052 plate has the characteristics of strong corrosion resistance and good machinability, which can maintain good durability in the Marine environment.
Ship internal components: 5052 H22 marine grade aluminum can also be used for ship internal components and equipment, such as cabin partitions, interior trim plates, ship furniture, etc. It can be machined and customized according to the needs of the ship's design to meet the requirements of the ship's interior space.
Marine fuel tank: 5052 H32 marine grade aluminum can be used to manufacture Marine fuel tanks. Fuel tanks are important equipment for storing Marine fuels, lubricants and other liquids, and the 5052 plate's high strength and good sealing properties make it an ideal material for the manufacture of reliable and durable Marine fuel tanks.Quick Quote
Ship ladders and handrails: marine grade 5052 aluminum sheet can be used to manufacture ladders and handrails on ships. Ship ladders and handrails need to be strong and stable enough to ensure the safety of the crew when disembarking or moving through the hull.
