2A10 H14 T4 aluminum wire for rivets produced by CHALCO plays an important role in applications requiring light weight, high shear strength, corrosion resistance and good plasticity, especially in the fields of aerospace, automotive, construction and electronics. Supply to SUKROBORONPROM, ASELSAN HEAVY INDUSTRIES TAXILA, Raytheon Company, SF Engineering and other world-renowned military equipment manufacturers.Welcome to contact
2A10 aluminum alloy wire for rivets specification
| Aluminum alloy | 2A10 |
| Temper | H14 T4 |
| Production standards | GB/T 3195 |
| Thickness (mm) | 1.6mm-10.0mm |
| Length (mm) | Coil |
| Surface Quality | No cracks, no burrs, no peeling, no bubbles, no bumps, no dents on the surface, |
| Package | No scratches, no triangular mouth, no metal press-in, non-metal press-in and |
| Remark | No corrosion, oil spots, etc. on the surface |
2A10 aluminum alloy wire for rivets chemical composition
| Element | Composition % | |
| Minimum value | Maximum value | |
| Fe | - | 0.2 |
| Si | - | 0.25 |
| Mn | 0.3 | 0.5 |
| Cu | 3.9 | 4.5 |
| Ti | - | 0.15 |
| Al | 93.9 | 95.65 |
| Zn | - | 0.1 |
| Mg | 0.15 | 0.4 |
2A10 aluminum alloy wire for rivets shear strength and riveting properties
| ALLOY | Supply | Sample Temper | diameter mm | Shear strength Mpa | Riveting performance | ||
| Protrusion height of sample ratio to diameter | Riveting test time | ||||||
| 2A10 | H14, T4 | T4 | 1.6～4.5 | ≥245 | 1.5 | After quenching and aging | |
| ＞4.5～8.0 | 1.4 | ||||||
| ＞8.0～10.0 | ≥235 | 1.3 | |||||
| ＞8.0～20.0 | — | ||||||
As aluminum wire for rivets, the most important thing is the shear resistance and riveting performance. Chalco can provide free samples for you to test. If the test performance is qualified, then place an order.Free samples
2A10 aluminum alloy wire for rivets thickness tolerances
| Diameter | Tolerance | |||
| A Class | B Class | C Class | D Class | |
| ≤1.6 |
+0.000 -0.015 |
+0.015 -0.015 |
±0.015 |
+0.00 -0.04 |
| ＞1.6-4.0 |
+0.000 -0.025 |
+0.025 -0.015 |
±0.025 |
+0.00 -0.05 |
| ＞4.0-6.0 |
+0.000 -0.030 |
+0.025 -0.025 |
±0.040 |
+0.00 -0.08 |
| ＞6.0-10.0 |
+0.000 -0.040 |
+0.050 -0.025 |
±0.060 |
+0.00 -0.12 |

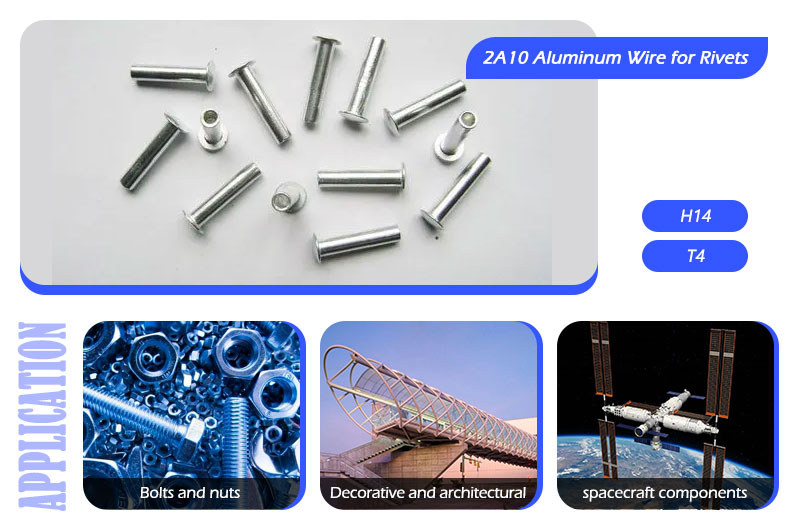

Application of 2A10 aluminum alloy wire in rivet
Rivet manufacturing: as its name suggests, 2A10 H14 T4 aluminum wire for rivets is mainly used to make rivets. A rivet is a fastener used to join two or more parts, especially in structures where vibration or loosening needs to be addressed. Widely used in aerospace, automotive, marine, construction and other mechanical engineering fields.
Bolts and nuts: aluminum alloy bolts and nuts are usually used in light load applications and environments with high corrosion resistance requirements. 2A10 H14 T4 aluminum wire for rivets can be used to manufacture these assemblies for the appropriate application.
Aircraft and spacecraft components: the aerospace field requires materials to have high strength and lightweight properties. 2A10 H14 T4 aluminum wire for rivets can be used to manufacture aircraft and spacecraft components, such as wings, fuselages, etc.
Decorative and architectural applications: due to the good corrosion resistance and appearance of aluminum alloy, 2A10 H14 T4 aluminum wire for rivets can also be used in the manufacture of decorative parts, door and window frames and other architectural applications.
Electronic products: aluminum alloys are also used in electronic products, such as the manufacture of casings or radiators for mobile phones, tablet computers, and notebook computers.
In summary, 2A10 H14 T4 aluminum wire for rivets plays an important role in applications that require light weight, high strength, corrosion resistance and good plasticity, especially in aerospace, automotive, construction and electronics.
Advantages of 2A10 aluminum wire for rivets
Lightweight: aluminum is a lightweight metal with a low density, so the aluminum wire for 2A10 rivets is relatively light and suitable for applications that require weight reduction. In fields such as aerospace and automotive, lightweight materials can reduce energy consumption and improve performance.
Strength: through reasonable heat treatment and cold work hardening, 2A10 aluminum wire for rivets can obtain good strength. This makes it excellent in many structural joining applications, capable of meeting some demanding strength needs.
Good corrosion resistance: aluminum has good corrosion resistance, and the formation of an oxide layer can protect its surface from further corrosion. This makes 2A10 aluminum wire for rivets more durable in wet or high humidity environments.
Plasticity: aluminum has good plasticity and can be easily shaped by cold or hot working, making it suitable for the manufacture of rivets of various shapes and sizes.
Weldability: 2A10 aluminum wire for rivets has good weldability, which means that it can be effectively connected and combined with other aluminum alloys or materials, increasing the flexibility of its application.
Recyclability: aluminum is a recyclable metal, which means that the aluminum wire for 2A10 rivets can be recycled and reused, which helps to reduce resource waste and environmental impact.
Overall, 2A10 aluminum wire for rivets is widely used in aerospace, automotive, construction and many other fields, where its light weight, strength, corrosion resistance and malleability make it a popular material option.
Purchase 2a10 aluminum wire for rivets
Each batch of wire rods is accompanied by a product quality certificate stating:
- Supplier name.
- Product name.
- Grade and status.
- Diameter.
- Batch number.
- Melting number.
- Net weight, or box, number of pieces.
- Test results of various analysis items.
- Inspection and printing by the quality inspection department.
- The number of this standard.
- Packaging date (or date of manufacture).
