5000 Series Aluminum Wire Rod for Rivets

5000 Series Aluminum wire for rivets using are widely used in the manufacture of high-strength rivets, solid or semi-hollow rivets, heart-tucking rivets, automotive brake rivets, etc. due to their superior properties such as low density, high strength, easy processing, good electrical and thermal conductivity, and corrosion resistance (after anodizing). The main alloy varieties are 5005 5050 5051 5052 5754 5056 5083 5154 5183 5A03 5A05 5A02 5A06 5B05.

Why choose Chalco 5000 series aluminum alloy wire rod for rivets?

Chalco Aluminum is an enterprise that integrates the design, development and precision testing of smelting, extrusion, and fine-drawn aluminum manufacturing.

Chalco Aluminum can provide excellent quality 5000 series aluminum alloy wire rods for rivets, as well as high-quality technical services in the market, and has a profound knowledge base on how to support customers to meet future challenges.

We have a complete set of domestic advanced research and development, testing and analysis instruments for aluminum alloy wire rods for rivets, which guarantee the efficiency of new product development and accelerate the transformation of scientific and technological achievements. In addition, our R&D & innovation and verification capabilities can help enhance customers' competitiveness by saving time and cost in new product development and marketing.

We have passed the AS9100 certification required by the aviation industry, the IATF16949 certification required by the automotive industry, etc., which provide a strong guarantee for the quality of the aluminum alloy wire rods used for rivets produced by our company.

certification

The Chalco brand stands for quality, delivery and a solid reputation. With leading technology and globally competitive products, we can continue to develop together with our customers in the future.

The specification introduction of 5000 series aluminum wire for rivets using

5005 Aluminum alloy wire rod for rivets
Size 3.0-15.0mm
Temper H18
Size Tolerance ±0.02mm
Weight Coil Above 50KGs
Function make snap rivets
5050 Aluminum alloy wire rod for rivets
Size 3.0-15.0mm
Temper H32
Size Tolerance ±0.02mm
Weight Coil Above 50KGs
Function make snap rivets
5051 Aluminum alloy wire rod for rivets
Size 3.0-10.0mm
Temper H18
Size Tolerance ±0.02mm
Weight Coil Above 50KGs
Function make solid, semi-tubular rivets
5052 Aluminum alloy wire rod for rivets
Size 3.0-15.0mm
Temper H14
Size Tolerance ±0.02mm
Weight Coil Above 50KGs
Function make solid, semi-tubular rivets
5754 Aluminum alloy wire rod for rivets
Size 19.5-21.5mm
Temper T2
Size Tolerance ±0.02mm
Weight Coil Above 500KGs
Function car brake rivets
5056 5083 Aluminum alloy wire rod for rivets
Size 1.0-10.0mm
Temper H32
Size Tolerance ±0.05mm
Weight Coil Above 300KGs
Function High strength solid rivets
5154 5183 Aluminum alloy wire rod for rivets
Size 3.0-15.0mm
Temper H18
Size Tolerance ±0.02mm
Weight Coil Above 50KGs
Function make snap rivets
5A03 Aluminum alloy wire rod for rivets
Size 0.8-30mm
Temper H
Size Tolerance ±0.02mm
Weight Coil Above 30KGs
Function screw rivet
5A05 5A02 Aluminum alloy wire rod for rivets
Size 1.0-15.0mm
Temper TO
Size Tolerance ±0.02mm
Weight Coil Above 50KGs
Function make rivets
5A06 5B05 Aluminum alloy wire rod for rivets
Size 1.0-15.0mm
Temper T2
Size Tolerance ±0.02mm
Weight Coil Above 50KGs
Function make rivets

Characteristics of 5000 series aluminum rod for rivet

Low density: 5000 series aluminum alloy wire rod for rivets has the characteristics of low density, which means that its weight is relatively light, which can not only provide reliable connection, but also reduce the weight of the overall structure, and meet the requirements of different industries for performance, durability and efficiency

Good strength and toughness: 5000 aluminum alloy rods for rivets have good strength and toughness, making them suitable for connections that require high reliability and durability.

Excellent corrosion resistance: 5000 series aluminium wires for rivets have excellent corrosion resistance, making them more durable in wet and corrosive environments.

Good weldability and formability: 5000 series aluminum alloy rod and wire for rivets has good weldability and formability, and is easy to process and manufacture into rivets of various shapes and sizes.

Relatively light weight: the relatively light weight of the 5000 series aluminium alloy wire for rivet is especially beneficial for applications that require overall weight reduction, such as the aerospace and automotive industries.

Good electrical and thermal conductivity: 5000 series aluminum alloy wire rods for rivets have the characteristics of good electrical and thermal conductivity. It can transfer heat quickly and help to keep the temperature of components or equipment stable in applications that require heat dissipation.

Characteristics of 5000 series aluminum rod for rivet

Key points for purchasing 5000 series aluminium wires for rivets

Aluminum alloy grades and specifications: make sure you buy aluminum alloy poles of the 5XXX series, such as 5A06, 5052, 5754, etc., because each grade has different characteristics and uses. Also, know the specifications of the pole, such as diameter, length, etc., to ensure it is suitable for your specific needs.

Quality certification and standards: make sure that the purchased aluminum alloy poles meet international or industry standards, such as ASTM, EN, etc. Pay attention to product quality certification, such as ISO certification, which can ensure reliable product quality.

Uses and application scenarios: choose the appropriate aluminum alloy pole according to your actual application scenario. Different grades of aluminum alloy poles are suitable for different environments and conditions, such as corrosion resistance, strength requirements, etc.

Supplier reputation: choose a reputable supplier or manufacturer to ensure that the products you buy are authentic and provide quality after-sales service.

Price and cost-effectiveness: compare the prices of different suppliers and choose the most cost-effective option in combination with product quality and service. Not only pay attention to the price, but also consider the performance and life of the product.

Packaging and shipping: make sure the aluminum alloy poles are packed properly to avoid damage during shipping. Know your supplier's shipping policies and lead times to ensure timely receipt of desired products.

After-sales service: understand the supplier's after-sales service policy, including returns, repairs and technical support. This is very important for problem solving and maintenance after purchase.

Key points for purchasing 5000 series aluminium wires for rivets

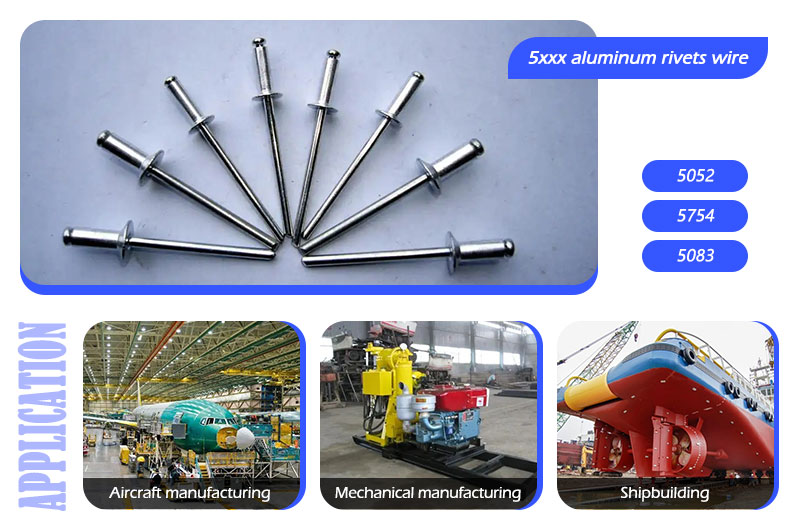

Application of 5000 series aluminum alloy rod and wire for rivets

Chalco Aluminum produces 14 types of 5000 Series aluminium alloy wire for rivet. The product tolerances are very strict, and the specifications cover 0.8-30mm. The weight of a single roll can be produced according to customer requirements.

5000 Series aluminum alloy wire rods for rivets are applied to the production of various fasteners, including high-strength solid rivets, solid or semi-tubular rivets, blind rivets, automotive brake rivets, ordinary rivets, etc., and are widely used in machinery, military, aerospace, ships, automobiles and other fields.

Application of 5000 series aluminum alloy rod and wire for rivets
