Why choose Chalco aluminum supplier?
As we all know, oil tank trucks are dangerous goods on the road, and the requirements for safety are very strict. In order to ensure that our products meet the safety requirements of the tank truck industry, we have passed the certification of the EN14286 standard (European standard for the safety of liquid transport tank trucks) and the ASTM B209 standard (the American aluminum plate industry standard).
Chalco cooperates with many well-known tank car manufacturers, including CIMC Lingyu, pt.geluran adikarya, almutlak, etc.
Chalco has a complete set of advanced material research and development, testing, and analysis instruments, which can provide high-quality aluminum plates that meet safety standards for the tank truck industry to ensure safety and reliability during transportation.
Specifications of 5754 aluminum sheet plate for oil tanker
| Alloy | 5754 |
| Temper | O, H111 |
| Thickness | 3.00-12.00mm |
| Width | 1000-2600mm |
| Length | 2000-12000mm |
| Surface grade | Click to view detailed surface treatment |
| Permissible deviation | Click to view detailed Permissible deviation |
| Standard | EN14286, ASTM B209 |
Chemical composition of 5754 aluminum sheet plate for oil tanker
| Element | Composition % |
| Si | 0.40 |
| Fe | 0.40 |
| Cu | 0.10 |
| Mn | 0.05 |
| Mg | 2.6-3.6 |
| Cr | 0.3 |
| Ni | - |
| Zn | 0.2 |
| Ti | 0.15 |
| Al | Remainder |
Mechanical properties of 5754 aluminum sheet plate for oil tanker
| Temper | Thickness/mm | Tensile Strength /MPa | Specified non-proportional Tensile Strength/MPa | Elongation After Break/% | A50 mm | Bending Radius |
| O, H111 | 3.00-6.00 | 190-240 | ≥80 | ≥21 | ≥4320 | 1.0t |
| >6.00-12.00 | 190-240 | ≥80 | ≥19 | ≥4320 | 2.0t |

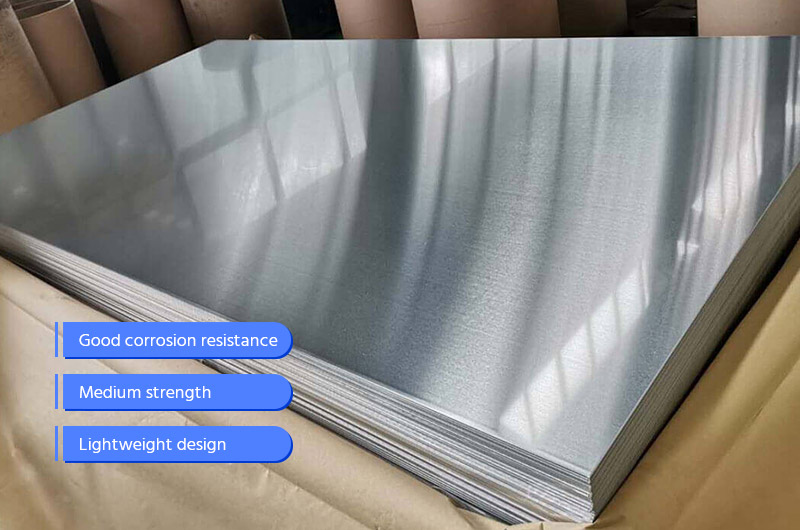

Features of 5754 aluminum sheet plate for oil tanker
Good corrosion resistance: 5754 aluminum plate has been specially treated to have excellent corrosion resistance, which can resist the erosion of chemical substances such as fuel and oil, thereby prolonging the service life of the tanker.
Medium strength: 5754 aluminum plate has moderate strength, can withstand certain mechanical stress and impact load, and shows good stability in the structural components of tank trucks.
Good processing performance: 5754 aluminum plate is easy to process and form, and can be processed by common processing methods such as cutting, bending, welding, etc., so as to meet the needs of tank truck manufacturing and assembly.
Lightweight design: compared with traditional steel, 5754 aluminum plate has a lower density, which enables the tank truck to achieve lightweight design. Reducing the overall weight of a vehicle not only improves fuel economy, it also reduces stress on roads and bridges and improves transport efficiency.
Recyclability: as an aluminum alloy material, 5754 aluminum plate has good recyclability. Through recycling and reuse, you can reduce the amount of waste generated, save energy and resources, and reduce the negative impact on the environment.

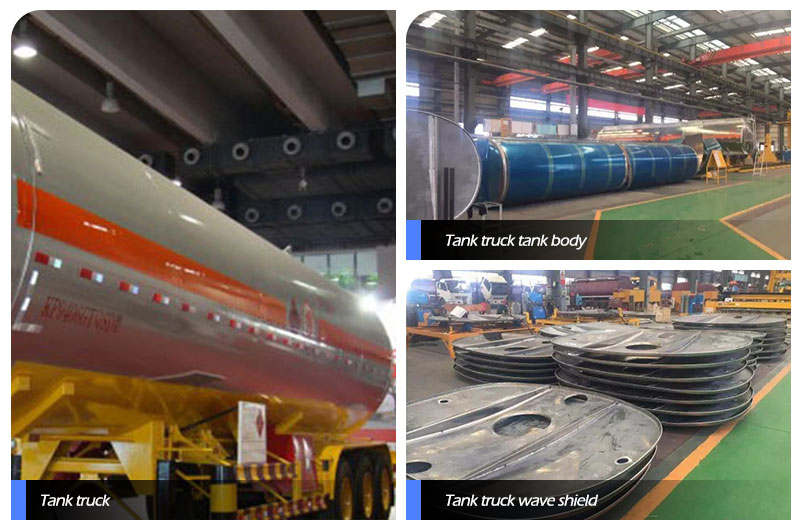

Chalco 5754 oil tanker aluminum plate hot selling products
5754-O tanker aluminum plate
5754-O aluminum plate has good plasticity and machinability, and can be made into a plate suitable for the shape of the fuel tank shell through cutting, forming and welding processes. It is often used in the production of fuel tank shells of automobiles, tank trucks and semi-trailers.
5754-H111 tanker aluminum plate
5754-H111 aluminum plate has medium strength and tensile properties, has been heat-treated and stabilized, and has good corrosion resistance and mechanical properties. It is mainly used for the tank structure and other load-bearing parts of tank trucks, which can withstand the mechanical stress and impact load during transportation, and maintain stability and reliability.
Precautions for purchasing 5754 oil tanker aluminum plate
Specification and size: choose the specifications of the 5754 tanker aluminum plate that suits you according to your actual needs, including plate thickness, width, length and other parameters.
Surface quality: the surface of 5754 Oil Tanker aluminum sheet produced by Chalco Aluminum is smooth and flat, without obvious protrusions or depressions, no obvious cracks, oxidation, blemishes and other defects.
Supplier reputation and service: the supplier's reputation and service quality are also factors that you need to consider. Chalco Aluminum is a supplier with a good reputation and perfect after-sales service to ensure your purchasing experience is pleasant and smooth.
Test certificate: the test certificate is an important proof to measure the quality of the aluminum plate. Chalco Aluminum can provide corresponding inspection certificates to ensure that aluminum sheets meet national or industry standards.
Packaging and shipping: Chalco Aluminum fully considers the packaging and shipping methods of aluminum sheets to ensure that they will not be damaged during shipping.
Surface grade of 5754 aluminum sheet plate for oil tanker
| Type | Standard Plate | High Class Plate | Bright Plate | Mirror Plate |
| Surface | ★★★☆☆ | ★★★★☆ | ★★★★☆ | ★★★★★ |
| Roughness Ra/μm | 0.5-0.8 | 0.3-0.5 | 0.1-0.3 | ≤0.04 |
| Product Description | Smooth surface Defect deepness ＜Minus Tolerances Of Thickness | Fine and smooth surface No or only very little colour aberration and chatters | Bright, fine and Smooth surface No colour aberration and chatters | Mirror reflective Surface Reflectance ≥86% |
| Applicable Standards | GB/T 3880 | EN14286 ASTM B209 EN485 Customer special requirements | EN14286 ASTM B209 Customer special requirements | EN14286 ASTM B209 Customer special requirements |
| Application | Use directly or After brashing Tanker Body, Tanker Head Wall Partition, Resistance Plate | Use directly Tanker Body, Tanker Head Wall Partition, Resistance Plate | Use directly Tanker Body, Tanker Head | Use directly Tanker Body, Tanker Head |
Permissible deviation of 5754 aluminum sheet plate for oil tanker
| Thickness tolerances within the following width ranges | ||||
| Thickness | ≤1250 | >1250-1600 | >1600-2000 | >2000-2600 |
| 3.00-3.50 | +0.28 | +0.28 | +0.30 | +0.40 |
| >3.50-6.00 | +0.32 | +0.32 | +0.40 | +0.45 |
| >6.00-8.00 | +0.38 | +0.45 | +0.50 | +0.60 |
| >8.00-12.00 | +0.45 | +0.55 | +0.65 | +0.80 |
