Aluminum angle 6061 is a type of angle-shaped aluminum alloy. It is the most versatile among the heat-treatable aluminum alloys. 6061 aluminum alloy offers a wide range of mechanical properties and corrosion resistance. It is easy to fabricate and has good formability..
After T6 heat treatment, 6061 aluminum angle can reach a tensile strength of up to 310 MPa. Compared to 6063 aluminum angle, 6061 not only has higher mechanical strength and load-bearing capacity, but is also especially suitable for applications with high structural strength requirements..
Therefore, if you are looking for an aluminum alloy angle with balanced performance, higher structural strength, and wider applicability, 6061 aluminum angle is undoubtedly a more reliable choice.
6061 aluminum angle product introduction
| Alloy | 6061 |
| Equivalent names | 6061, AA6061, A96061, EN AW-6061, AlMg1SiCu, 3.3211, A6061, H20 |
| Hot Temper | T6 |
| Specification | ASTM B308, AMS-QQ-A-200/8, ASTM B221-08 |
| Thickness | 1/16", 1/8", 1/4”, 3/8”, 3/4”, 1 |
| Leg Height | 1/2” – 8” or customized |
| Length | 1-6m or customized |
| Tolerance | Standard Length Tolerance = +/- 1/4" Custom Cut Tolerance = +/- 1/16" |
| Production process | Extrusion |
| Surface treatment | Anodizing is the most popular, followed by powder coating, polishing, and others. |
| Processing | Cutting, drilling, bending, welding, milling, CNC machining, etc. |
Popular types of 6061 aluminum angle
Chalco offers a wide variety of 6061 aluminum angle types to meet your different needs. If required, please click "Contact Us" to send an email for a quotation. Quick Quote

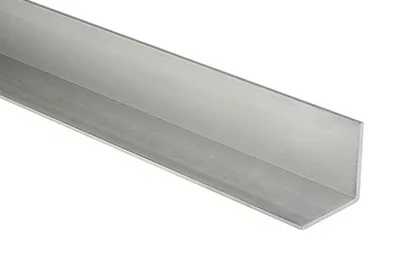

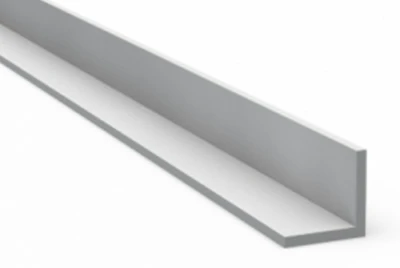

6061 equal leg aluminum angle
Both sides have equal lengths, providing a symmetrical structure with even force distribution and easy installation. It is commonly used in general-purpose brackets, frames, and standardized structural projects.

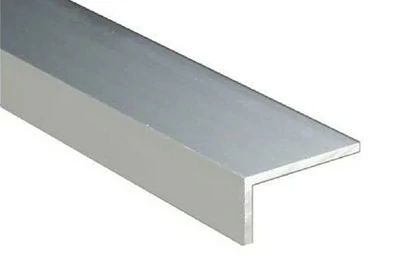

6061 unequal leg aluminum angle
The two sides have different lengths, making it suitable for structural requirements in confined spaces or with uneven force distribution. It is commonly used in special components, irregular supports, and reinforced structures.

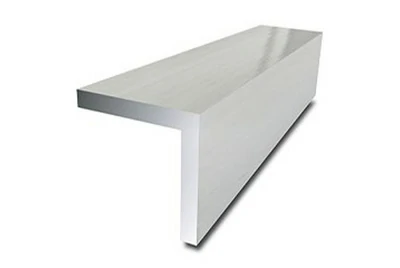

6061 right angle aluminum angle
Both sides have equal lengths, providing a symmetrical structure with even force distribution and easy installation. It is commonly used in general-purpose brackets, frames, and standardized structural projects.

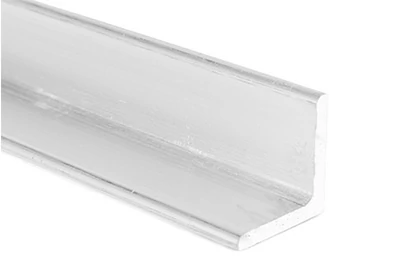

6061 round corner aluminum angle
The two sides have different lengths, making it suitable for structural requirements in confined spaces or with uneven force distribution. It is commonly used in special components, irregular supports, and reinforced structures.
6061 anodized aluminum angle
Both sides have equal lengths, providing a symmetrical structure with even force distribution and easy installation. It is commonly used in general-purpose brackets, frames, and standardized structural projects.
6061 polished aluminum angle
The two sides have different lengths, making it suitable for structural requirements in confined spaces or with uneven force distribution. It is commonly used in special components, irregular supports, and reinforced structures.

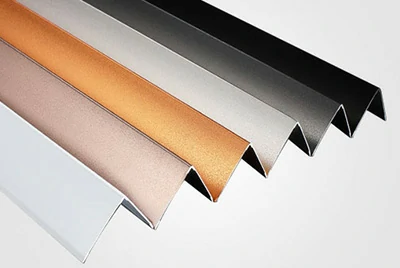

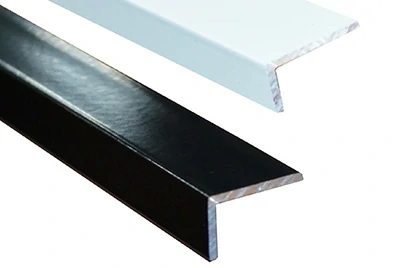

6061 color-coated aluminum angle
Both sides have equal lengths, providing a symmetrical structure with even force distribution and easy installation. It is commonly used in general-purpose brackets, frames, and standardized structural projects.

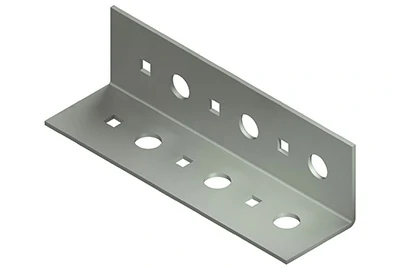

6061 slotted aluminum angle
The two sides have different lengths, making it suitable for structural requirements in confined spaces or with uneven force distribution. It is commonly used in special components, irregular supports, and reinforced structures.
Hot-selling sizes of AA6061 aluminum angle
Chalco can supply common sizes of 6061 aluminum angle as well as custom various special dimensions. If you have any requirements, please feel free to contact us. Quick Quote
Ordering information:
- We can provide free samples for your testing before placing an order. Chalco has absolute confidence in the quality of its products.
- A wide range of mold sizes is available to help you save on mold opening costs. Click to view specific mold sizes .
- All in-stock products are available for retail with no minimum order quantity. Orders can be cleared and shipped within one week after confirmation.
- As an original manufacturer, our company offers large-scale, integrated production. The price of our 6061 aluminum angles is about 10% lower than the market price for the same quality.
- We are a trusted brand with strict quality inspection processes, eliminating your concerns about product quality.
- Bulk and repeat customers can enjoy discounted prices, making your offers more competitive.
- If you do not find the right size below, please contact us in time—we're here to help solve your problem. Quick Quote
6061 aluminum angle dimensions chart
| Product | dimension A x B x T(inch) | Weight / Ft. lb/ft | Specification |
| 6061-t6 aluminum angle | 1/2" x 1/2" x 1/8" | 0.13 lb/ft | ASTM B308; AMS-QQ-A-200/8 |
| 6061-t6 aluminum angle | 1" x 1" x 1/8" | 0.27 lb/ft | ASTM B308; AMS-QQ-A-200/8 |
| 6061-t6 aluminum angle | 1" x 1" x 3/16" | 0.4 lb/ft | ASTM B308; AMS-QQ-A-200/8 |
| 6061-t6 aluminum angle | 1" x 1" x 1/4" | 0.52 lb/ft | ASTM B308; AMS-QQ-A-200/8 |
| 6061-t6 aluminum angle | 1-1/4" x 1-1/4" x 1/8" | 0.34 lb/ft | ASTM B308; AMS-QQ-A-200/8 |
| 6061-t6 aluminum angle | 1-1/4" x 1-1/4" x 3/16" | 0.51 lb/ft | ASTM B308; AMS-QQ-A-200/8 |
| 6061-t6 aluminum angle | 1-1/4" x 1-1/4" x 1/4" | 0.65 lb/ft | ASTM B308; AMS-QQ-A-200/8 |
| 6061-t6 aluminum angle | 1-1/2" x 1" x 1/8" | 0.35 lb/ft | ASTM B308; AMS-QQ-A-200/8 |
| 6061-t6 aluminum angle | 1-1/2" x 1" x 1/4" | 0.67 lb/ft | ASTM B308; AMS-QQ-A-200/8 |
| 6061-t6 aluminum angle | 1-1/2" x 1-1/2" x 1/8" | 0.42 lb/ft | ASTM B308; AMS-QQ-A-200/8 |
| 6061-t6 aluminum angle | 1-1/2" x 1-1/2" x 3/16" | 0.61 lb/ft | ASTM B308; AMS-QQ-A-200/8 |
| 6061-t6 aluminum angle | 1-1/2" x 1-1/2" x 1/4" | 0.8 lb/ft | ASTM B308; AMS-QQ-A-200/8 |
| 6061-t6 aluminum angle | 1-3/4" x 1-3/4" x 1/8" | 0.5 lb/ft | ASTM B308; AMS-QQ-A-200/8 |
| 6061-t6 aluminum angle | 1-3/4" x 1-3/4" x 1/4" | 0.94 lb/ft | ASTM B308; AMS-QQ-A-200/8 |
| 6061-t6 aluminum angle | 2" x 1-1/2" x 1/8" | 0.5 lb/ft | ASTM B308; AMS-QQ-A-200/8 |
| 6061-t6 aluminum angle | 2" x 1-1/2" x 3/16" | 0.75 lb/ft | ASTM B308; AMS-QQ-A-200/8 |
| 6061-t6 aluminum angle | 2" x 1-1/2" x 1/4" | 0.95 lb/ft | ASTM B308; AMS-QQ-A-200/8 |
| 6061-t6 aluminum angle | 2" x 2" x 1/8" | 0.57 lb/ft | ASTM B308; AMS-QQ-A-200/8 |
| 6061-t6 aluminum angle | 2" x 2" x 3/16" | 0.85 lb/ft | ASTM B308; AMS-QQ-A-200/8 |
| 6061-t6 aluminum angle | 2" x 2" x 1/4" | 1.11 lb/ft | ASTM B308; AMS-QQ-A-200/8 |
| 6061-t6 aluminum angle | 2" x 2" x 3/8" | 1.61 lb/ft | ASTM B308; AMS-QQ-A-200/8 |
| 6061-t6 aluminum angle | 2-1/2" x 1-1/2" x 1/4" | 1.12 lb/ft | ASTM B308; AMS-QQ-A-200/8 |
| 6061-t6 aluminum angle | 2-1/2" x 2" x 1/4" | 1.26 lb/ft | ASTM B308; AMS-QQ-A-200/8 |
| 6061-t6 aluminum angle | 2-1/2" x 2-1/2" x 1/8" | 0.73 lb/ft | ASTM B308; AMS-QQ-A-200/8 |
| 6061-t6 aluminum angle | 2-1/2" x 2-1/2" x 3/16" | 1.08 lb/ft | ASTM B308; AMS-QQ-A-200/8 |
| 6061-t6 aluminum angle | 2-1/2" x 2-1/2" x 1/4" | 1.41 lb/ft | ASTM B308; AMS-QQ-A-200/8 |
| 6061-t6 aluminum angle | 2-1/2" x 2-1/2" x 3/8" | 2.05 lb/ft | ASTM B308; AMS-QQ-A-200/8 |
| 6061-t6 aluminum angle | 3" x 2" x 3/16" | 1.07 lb/ft | ASTM B308; AMS-QQ-A-200/8 |
| 6061-t6 aluminum angle | 3" x 2" x 1/4" | 1.4 lb/ft | ASTM B308; AMS-QQ-A-200/8 |
| 6061-t6 aluminum angle | 3" x 2" x 3/8" | 2.05 lb/ft | ASTM B308; AMS-QQ-A-200/8 |
| 6061-t6 aluminum angle | 3" x 3" x 3/16" | 1.28 lb/ft | ASTM B308; AMS-QQ-A-200/8 |
| 6061-t6 aluminum angle | 3" x 3" x 1/4" | 1.68 lb/ft | ASTM B308; AMS-QQ-A-200/8 |
| 6061-t6 aluminum angle | 3" x 3" x 3/8" | 2.47 lb/ft | ASTM B308; AMS-QQ-A-200/8 |
| 6061-t6 aluminum angle | 3" x 3" x 1/2" | 3.23 lb/ft | ASTM B308; AMS-QQ-A-200/8 |
| 6061-t6 aluminum angle | 3-1/2" x 3-1/2" x 1/4" | 2 lb/ft | ASTM B308; AMS-QQ-A-200/8 |
| 6061-t6 aluminum angle | 3-1/2" x 3-1/2" x 3/8" | 2.98 lb/ft | ASTM B308; AMS-QQ-A-200/8 |
| 6061-t6 aluminum angle | 3-1/2" x 3-1/2" x 1/2" | 3.84 lb/ft | ASTM B308; AMS-QQ-A-200/8 |
| 6061-t6 aluminum angle | 4" x 3" x 1/4" | 2 lb/ft | ASTM B308; AMS-QQ-A-200/8 |
| 6061-t6 aluminum angle | 4" x 3" x 3/8" | 2.93 lb/ft | ASTM B308; AMS-QQ-A-200/8 |
| 6061-t6 aluminum angle | 4" x 3" x 1/2" | 3.92 lb/ft | ASTM B308; AMS-QQ-A-200/8 |
| 6061-t6 aluminum angle | 4" x 4" x 1/4" | 2.28 lb/ft | ASTM B308; AMS-QQ-A-200/8 |
| 6061-t6 aluminum angle | 4" x 4" x 3/8" | 3.37 lb/ft | ASTM B308; AMS-QQ-A-200/8 |
| 6061-t6 aluminum angle | 4" x 4" x 1/2" | 4.42 lb/ft | ASTM B308; AMS-QQ-A-200/8 |
| 6061-t6 aluminum angle | 5" x 3" x 1/4" | 2.3 lb/ft | ASTM B308; AMS-QQ-A-200/8 |
| 6061-t6 aluminum angle | 5" x 3" x 3/8" | 3.35 lb/ft | ASTM B308; AMS-QQ-A-200/8 |
| 6061-t6 aluminum angle | 5" x 3" x 1/2" | 4.4 lb/ft | ASTM B308; AMS-QQ-A-200/8 |
| 6061-t6 aluminum angle | 5" x 5" x 1/4" | 2.88 lb/ft | ASTM B308; AMS-QQ-A-200/8 |
| 6061-t6 aluminum angle | 5" x 5" x 3/8" | 4.23 lb/ft | ASTM B308; AMS-QQ-A-200/8 |
| 6061-t6 aluminum angle | 5" x 5" x 1/2" | 5.56 lb/ft | ASTM B308; AMS-QQ-A-200/8 |
| 6061-t6 aluminum angle | 6" x 3" x 3/8" | 3.8 lb/ft | ASTM B308; AMS-QQ-A-200/8 |
| 6061-t6 aluminum angle | 6" x 4" x 3/8" | 4.23 lb/ft | ASTM B308; AMS-QQ-A-200/8 |
| 6061-t6 aluminum angle | 6" x 4" x 1/2" | 5.12 lb/ft | ASTM B308; AMS-QQ-A-200/8 |
| 6061-t6 aluminum angle | 6" x 6" x 3/8" | 5.12 lb/ft | ASTM B308; AMS-QQ-A-200/8 |
| 6061-t6 aluminum angle | 6" x 6" x 1/2" | 6.76 lb/ft | ASTM B308; AMS-QQ-A-200/8 |
| 6061-t6 aluminum angle | 6" x 6" x 3/4" | 9.92 lb/ft | ASTM B308; AMS-QQ-A-200/8 |
| 6061-t6 aluminum angle | 8" x 6" x 3/4" | 11.8 lb/ft | ASTM B308; AMS-QQ-A-200/8 |
| 6061-t6 aluminum angle | 8" x 8" x 1/2" | 9.2 lb/ft | ASTM B308; AMS-QQ-A-200/8 |
| 6061-t6 aluminum angle | 8" x 8" x 3/4" | 13.48 lb/ft | ASTM B308; AMS-QQ-A-200/8 |
| 6061-t6 aluminum angle | 8" x 8" x 1" | 17.7 lb/ft | ASTM B308; AMS-QQ-A-200/8 |
Features of 6061 aluminum angle
Stable structural strength: 6061 is an Al-Mg-Si alloy with good yield strength and ductility, suitable for components under static or light dynamic loads.
T6 heat treatment enhancement: In T6 condition, tensile strength can reach up to 290 MPa, ideal for frames and supports requiring strength.
Excellent weldability: Unlike high-strength alloys like 7075 or 2024, 6061 resists cracking during welding, making it suitable for welded beams, joints, and assemblies.
High corrosion and weather resistance: The stable Mg₂Si phase provides strong atmospheric corrosion resistance, ideal for cable trays and exposed structures.
Low stress concentration: Uniform metal structure reduces stress concentration after processing, extending structural lifespan.
Moderate bending rigidity: Compared to softer alloys like 6063, 6061 offers better bending and torsional resistance in long-span or cantilevered applications.
Easy mechanical joining: Post-processing surface hardness prevents thread stripping and hole collapse, enabling reliable mechanical connections.
Stable thermal expansion: Controlled thermal expansion in varying temperatures suits precision structures or multi-material assemblies.
Fatigue resistance: While not as strong as 7075, 6061 can withstand repeated loads over time, making it suitable for cyclic loading structures.
Good section stability: Extruded angles resist deformation, ideal for structures needing long-term vertical, support, or corner alignment.
Application fields of 6061 aluminum angle

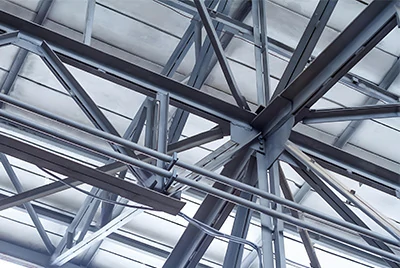

Construction engineering
6061 aluminum angle is widely used in basic structures such as building frames, structural connections, and curtain wall systems. With its excellent strength and corrosion resistance, it is suitable for a variety of indoor and outdoor structural applications.

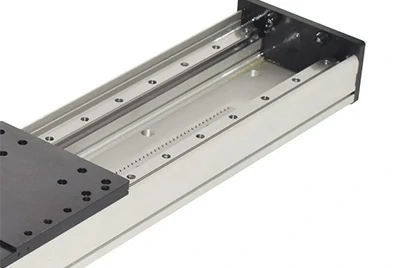

Machinery manufacturing
In various industrial machinery and equipment manufacturing, 6061 aluminum angle is used for brackets, guide rails, structural frames, and more. Its excellent machinability and strength-to-weight ratio meet the dual demands of efficient assembly and structural stability.

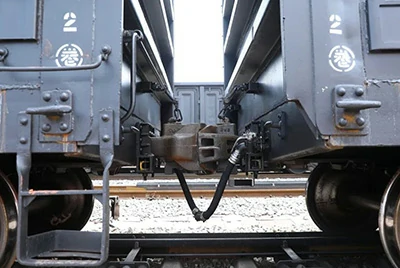

Transportation
6061 aluminum angle is commonly used in the structural frames and connecting components of automobiles, trailers, and rail vehicles. Its lightweight properties help reduce weight and energy consumption while maintaining structural strength.

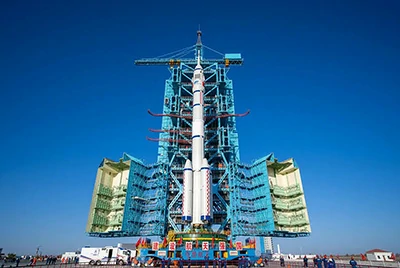

Aerospace
Used in ground support equipment, maintenance tooling, and non-critical structural support components. In the aerospace industry, 6061 is favored for its medium-to-high strength and excellent machinability.

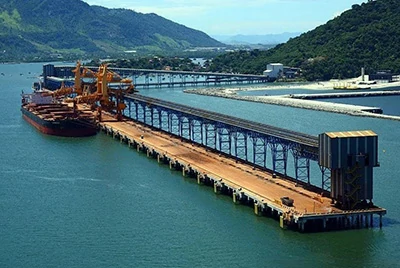

Shipbuilding and marine engineering
6061 aluminum angle is suitable for ship interiors, railings, walkway structures, and dock facilities. Its resistance to seawater corrosion makes it especially ideal for structural use in marine environments.

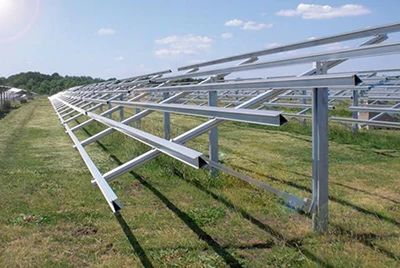

New energy
Widely used in solar photovoltaic mounting systems and auxiliary structures of wind power towers. 6061 offers excellent weather resistance, lightweight properties, and structural stability, making it ideal for long-term outdoor fixed applications.

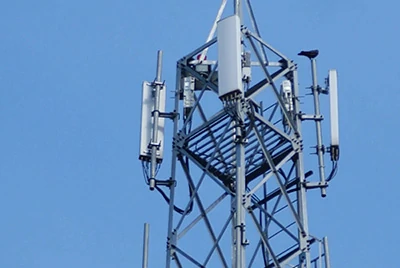

Telecommunication and power engineering
Used in base station brackets, cable routing supports, and electrical protection components. Its durability and structural precision are especially important for elevated and outdoor equipment.

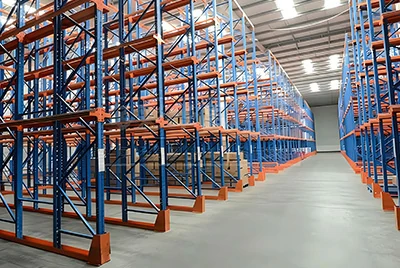

Logistics and warehousing systems
6061 aluminum angle is commonly used in storage racks, logistics sorting systems, and modular assembly line support structures. With moderate strength, wear resistance, and corrosion resistance, it is well-suited for long-term heavy-duty operating environments.

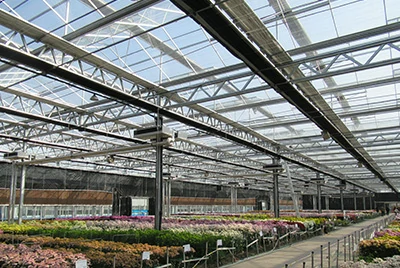

Agricultural facility construction
6061 aluminum angle performs well in applications such as greenhouse frames, irrigation system supports, and agricultural machinery structures. Its corrosion resistance and rust-free properties make it suitable for high-humidity and highly corrosive agricultural environments.

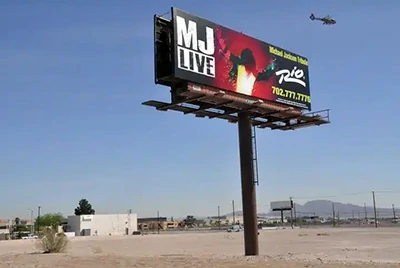

Advertising and display industry
I6061 aluminum angle is widely used in exhibition setups, billboard frames, and lightbox structures. Its aesthetic appeal and ease of processing meet the needs for quick assembly and customized appearance.
What colors of 6061 aluminum angle can Chalco provide?
Chalco can provide aluminum angles in any color. The following are common colors.
Can't find the color you like? Contact us for customization.Quick Quote
6061 Golden Aluminum Angle
6061 silver aluminum angle
Black 6061 angle aluminum
Grey 6061 aluminum angle
Red 6061 aluminum angle
Iron grey 6061 aluminum angle
Differences between 6061 aluminum angle and 6063 aluminum angle
When choosing aluminum angles for your project, selecting the right alloy is crucial to ensure optimal performance, durability, and cost-effectiveness. 6061 and 6063 aluminum angles are two of the most commonly used grades—but they serve different purposes. The comparison below highlights the key differences to help you make an informed decision:
| Feature | 6061 Aluminum Angle | 6063 Aluminum Angle |
| Alloy Composition | Al-Mg-Si-Cu (with copper, higher strength) | Al-Mg-Si (no copper, better surface finish) |
| Tensile Strength | Higher – approx. 42, 000 psi (T6) | Lower – approx. 27, 000 psi (T6) |
| Weldability | Good, but strength drops in weld zones | Excellent, weld strength remains consistent |
| Machinability | Excellent – ideal for drilling, tapping, and milling | Good – suitable for light fabrication |
| Corrosion Resistance | Good, but slightly lower than 6063 | Excellent – especially after anodizing |
| Anodizing Finish | Fair – darker, rougher appearance | Superior – smooth, bright, ideal for decorative use |
| Typical Use Cases | Structural frames, mechanical components, heavy supports | Architectural trim, window frames, railing, furniture |
| Appearance Priority | Secondary – more function over form | Primary – commonly used in visible or finished products |
| Cost Trend | Slightly higher | More economical for high-volume decorative applications |
Selection advice:
Choose 6061: When you need higher strength, better structural stability, and load-bearing capacity, or when it's used for mechanical purposes.
Choose 6063: When appearance, anodizing finish, and aesthetics are more important, and the strength requirements are moderate.
Other aluminum angle products you may be interested in
6063 aluminum angle
7075 aluminum angle
2024 aluminum angle
Why choose Chalco as your 6061 aluminum angle supplier?
Free 6061 aluminum angle samples
Chalco offers free samples of standard-size 6061-T6 aluminum angles for cooperating customers, making it easy for you to perform quality evaluation and compatibility testing.
Ample inventory and fast delivery
We maintain large stock of standard specifications, supporting quick shipping and flexible lead times—ideal for project-based procurement and bulk overseas orders.
High cost-performance ratio to help control your budget
Chalco reduces unit production costs through large-scale centralized purchasing and efficient manufacturing. While ensuring quality, we offer more competitive pricing options.
Strong customization capabilities and a wide range of specifications
Chalco supplies aluminum angles in various specifications from 1/2" to 8", including equal leg, unequal leg, round corner, and right angle types. We also offer secondary processing such as cutting, punching, and drilling according to your drawings to meet custom needs.
Advanced equipment ensures precision and efficiency
Using German extrusion machines and online inspection systems, we ensure accurate angle formation, clean edges, and smooth surfaces. Even for mass production, we maintain consistent sizing and stable lead times.
Various surface treatments to meet diverse industry needs
We support anodizing, powder coating, polishing, and color coating, making our products suitable for architectural decoration, machinery manufacturing, aerospace equipment, and more. Surface treatment significantly enhances corrosion resistance and appearance.
Strict quality inspection ensures export-grade quality
Before delivery, all products undergo multiple inspections, including dimensional accuracy, mechanical properties, hardness, and chemical composition, with original factory warranties and test reports provided. Products meet the certification requirements of high-end markets such as Europe and the U.S.
Compliant with international standards, ensuring smooth export
We supply 6061-T6 aluminum angles that comply with ASTM B221, EN 573, GB/T, and other international standards. Equivalent designations such as UNS A96061, AA6061, and EN AW-6061 are supported to facilitate customs clearance, bidding, and cross-border project use.
Common FAQs about A96061 aluminum angle
Which industries is EN-AW 6061 aluminum angle suitable for?
6061 aluminum angle is widely used in machinery, structural engineering, automotive manufacturing, solar mounting systems, marine components, and more. It offers moderate strength, strong corrosion resistance, and a good balance of machinability and cost-effectiveness.
How to properly cut and process 6061 aluminum angle?
It is recommended to use band saws, miter saws, or CNC machines equipped with carbide-tipped blades for cutting. Ensure proper clamping to minimize vibration during processing. When bending, control the angle carefully to avoid cracks or dimensional inaccuracies caused by stress concentration.
Do you offer cutting and CNC machining services?
Yes, we provide cutting, drilling, milling, tapping, welding, and other CNC precision machining services for 6061 aluminum angle. Custom fabrication based on drawings is supported to meet structural assembly needs.
What are the main factors affecting the price of 6061 aluminum angle?
The price is typically influenced by fluctuations in raw material markets, specification and dimensions, heat treatment condition (such as T6), processing techniques, and surface treatment methods. Larger sizes or custom parts may also involve mold and processing fees.
How to calculate the weight of 6061 aluminum angle?
Follow these steps:
- Use the density of 6061 aluminum (approximately 2.70 g/cm³);
- Calculate the cross-sectional area: A = (a × t) + (b × t) – t²;
- Volume = A × length;
- Weight = volume × density (can be converted into kilograms or pounds), which is useful for engineering design and estimating transportation costs.
Can 6061 aluminum angle be welded?
Yes, 6061 aluminum alloy has good weldability and is commonly welded using TIG or MIG methods. However, the strength in the heat-affected zone significantly decreases after welding, so post-weld heat treatment or structural reinforcement is recommended when necessary.
Can 6061 aluminum angle be customized?
Yes, we support customization including size (equal or unequal leg), cutting length, slotting and drilling, anodizing, polishing, and more. Customized products are suitable for mid-to-high-end structural applications, with flexible lead times.
Is 6061 aluminum angle reliable for outdoor use?
Highly reliable. 6061 aluminum has good natural corrosion resistance, and when combined with anodizing or coating, it can withstand long-term exposure to moisture, UV rays, and acidic or alkaline environments. It is widely used in solar mounting systems, fences, and outdoor equipment.
Can 6061 aluminum angle be anodized?
Yes, its surface can be anodized to enhance corrosion resistance and visual appearance. While the finish is slightly less bright than 6063 after anodizing, it is better suited for outdoor or industrial-grade applications..
6061 aluminum angle mold size reference table
| A(mm) | B(mm) | T(mm) | Llinear density(Kg/m) | Extrusion tonnage | Material | R radius |
| 10 | 10 | 2 | 0.09 | 500T | 6061-T6 | Yes |
| 12 | 12 | 2 | 0.112 | 500T | 6061-T6 | Yes |
| 12.7 | 12.7 | 1.6 | 0.103 | 500 | 6061-T6511 | - |
| 10 | 15 | 2 | 0.124 | 660T | 6061-T6 | - |
| 9.53 | 19.05 | 2.39 | 0.173 | 500 | 6061-T6 | Yes |
| 15 | 27 | 2 | 0.209 | 500T | 6061-T6 | Yes |
| 7 | 29 | 2 | 0.177 | 660T | 6061-T6 | Yes |
| 25 | 30 | 4 | 0.537 | 660T | 6061-T6 | Yes |
| 30 | 30 | 2 | 0.304 | 660T | 6061-T4 | Yes |
| 31.75 | 31.75 | 3.18 | 0.519 | 660T | 6061-T6 | - |
| 17 | 32 | 2 | 0.247 | 500T | 6061-T6 | Yes |
| 28 | 32 | 2 | 0.306 | 660T | 6061-T6 | Yes |
| 20 | 33.5 | 3 | 0.397 | 660T | 6061-T6 | Yes |
| 24 | 36.08 | 2 | 0.316 | 660T | 6061-T6 | Yes |
| 17 | 37 | 2 | 0.286 | 500T | 6061-T6 | Yes |
| 25.4 | 38.1 | 3.18 | 0.517 | 660T | 6061-T6511 | - |
| 38.1 | 38.1 | 2.3 | 0.459 | 660 | 6061-T6 | - |
| 15 | 42 | 3 | 0.437 | 660T | 6061-T6 | - |
| 44.5 | 44.5 | 6.4 | 1.429 | 1250T | 6061-T6 | Yes |
| 20 | 45 | 6 | 0.928 | 880T | 6061-T6 | Yes |
| 44 | 49.54 | 3 | 0.721 | 880T | 6061-T6 | Yes |
| 50 | 50 | 8 | 1.997 | 1800T | 6061-T6 | Yes |
| 50.8 | 50.8 | 6.35 | 1.644 | 1250T | 6061-T6 | Yes |
| 50.8 | 50.8 | 9.53 | 2.369 | 2000T | 6061-T6 | - |
| 30 | 65 | 6 | 1.442 | 1250T | 6061-T6 | - |
| 65 | 65 | 9 | 2.94 | 2000T | 6061-T6 | Yes |
| 75 | 75 | 9 | 3.426 | 2000T | 6061-T6 | Yes |
| 76.2 | 76.2 | 9.525 | 3.674 | 1800 | 6061-T6 | - |
| 58 | 92 | 10 | 3.679 | 2750T | 6061-T6 | Yes |
| 40 | 100 | 10 | 3.515 | 2750T | 6061-T6 | Yes |
| 75 | 100 | 9 | 4.033 | 2750T | 6061-T6 | Yes |
| 100 | 100 | 6 | 3.16 | 2750T | 6061-T6 | Yes |
| 100 | 100 | 9 | 4.641 | 2750T | 6061-T6 | Yes |
| 10.5 | 100.5 | 2 | 0.585 | 1250T | 6061-T6 | Yes |
| 50.8 | 101.6 | 6 | 2.372 | 2000T | 6061-T6 | - |
| 50.8 | 101.6 | 6.35 | 2.57 | 1800 | 6061-T6 | Yes |
| 76.2 | 101.6 | 6.35 | 2.94 | 1800 | 6061-T6 | - |
| 76.2 | 101.6 | 9.525 | 4.328 | 2000T | 6061-T6 | - |
| 101.6 | 101.6 | 9.53 | 4.987 | 1800 | 6061-T6 | Yes |
| 40 | 121 | 3 | 1.264 | 1250T | 6061-T6 | Yes |
| 140 | 140 | 8 | 5.948 | 3600T | 6061-T6 | Yes |
| 143 | 143 | 3 | 2.183 | 2000T | 6061-T6 | Yes |
| 145 | 145 | 16 | 11.837 | 3600T | 6061-T6 | R2 |
| 146 | 146 | 7 | 5.355 | 3600T | 6061-T6 | R4 |
| 146 | 148 | 6 | 4.643 | 3600T | 6061-T6 | Yes |
| 75 | 150 | 6 | 3.547 | 2750T | 6061-T6 | R0.5 |
| 146 | 150 | 7 | 5.442 | 3600T | 6061-T6 | R3 |
| 76.2 | 152.4 | 6.35 | 3.81 | 2750T | 6061-T6511 | R0.5 |
| 75.7 | 160 | 10 | 6.107 | 3600T | 6061-T6 | Yes |
| 76 | 160 | 10 | 6.129 | 3600 | 6061-T6 | Yes |
| 77.8 | 160 | A=16/B=10 | 7.337 | 3600T | 6061-T6 | Yes |
| 78 | 160 | A=16/B=10 | 7.346 | 3600T | 6061-T6 | Yes |
| 80 | 160 | 6 | 3.874 | 2750T | 6061-T6 | Yes |
| 128 | 163 | 7 | 5.282 | 3600T | 6061-T6 | R7 |
| 128 | 163 | 7 | 5.282 | 3600T | 6061-T6 | - |
| 79.8 | 165 | 10 | 6.381 | 3600T | 6061-T6 | Yes |
| 80 | 165 | 10 | 6.386 | 3600T | 6061-T6 | Yes |
| 50 | 180 | 10 | 6.025 | 3600T | 6061-T6 | Yes |
| 43 | 180 | 7 | 4.057 | 2750T | 6061-T6 | Yes |
| 75 | 195 | 9 | 6.396 | 3600 | 6061-T6 | Yes |
| 79.8 | 195 | A=16/B=10 | 8.369 | 3600T | 6061-T6 | Yes |
| 80 | 195 | A=16/B=10 | 8.377 | 3600 | 6061-T6 | Yes |
| 50 | 200 | 8 | 5.271 | 3600T | 6061-T6 | - |
| 245 | 245 | 35 | 43.706 | 12500T | 6061-T6 | Yes |
| 56 | 305 | A=10/B=8 | 7.942 | 5500T | 6061-T6 | Yes |
| 100 | 320 | 10 | 11.07 | 5500T | 6061-T6 | R2 |
