Why choose Chalco Aluminum electrical aluminum busbar?
Chalco 6082 EC grade aluminum busbar, conforms to IEC 60105, ISO 209-1, DIN EN 755-2, DIN EN 755-5 standards, has excellent conductivity, high strength, good corrosion resistance, and lightweight design.
Chalco Aluminum supplies 1050, 1060, 1070, 1100, 1350, 6060, 6082, 6101 etc. conductive aluminum busbar product. The products have been widely exported to Hitachi, ABB, Siemens, Legrand, Toshiba etc. companies, and enjoy good reputation from them.
Specification of Chalco Aluminum 6082 electrical aluminum busbar
| EC 6082 aluminum busbar specification | |
| Temper | T3, T4, T5, T6 |
| Requirements for surface quality | Smooth surface without defects such as burrs and spots; The surface is clean, dust-free, oil-free, and free of other impurities; The oxide layer is uniform, dense, and has good corrosion resistance; |
| Surface treatment | Anodizing, electroplating, spraying, etc. Usually aluminum plating includes: silver, tin, nickel |
| Insulation treatment | Insulation coating: powder coating, epoxy resin coating or insulation paint coating, etc. Insulating sleeve: polyvinyl chloride (PVC), heat shrink tubing, or silicone rubber, etc. |
| Product packaging | When delivering according to length, it should be packaged in bundles and boxes, and when delivering according to quality, it should be packaged in discs, circles, or bundles. |
| Test | Conductivity test, temperature rise test, bending test, etc. |
| Standard | IEC 60105, ISO 209-1, 2, DIN EN 755-2, DIN EN 755-5 |
| Dimensions and tolerance | |||
| Length | Maximum 6m [Click for size table] | ||
| Width | 10mm-200mm | ||
| Width tolerance [mm] | b≤35.50 | ±0.40 | |
| 35.50<b≤100.00 | ±0.80 | ||
| 6>100.00 | ±1.20 | ||
| Thickness | 0.15mm-40mm | ||
| Thickness tolerance [mm] | a≤6.30 | ±0.15 | |
| 6.30<a≤12.50 | ±0.20 | ||
| a>12.50 | ±0.30 | ||
| Minimum Bend Radius [mm] | 1x thickness (up to 12mm) 2x thickness (>12mm) | ||
Note: In the above table,
a=thickness, i.e. narrow edge size;
b=width refers to the size of the wide edge.
| Aluminium alloy 6082 busbar equivalent grades | ||||||
| UNS | WNR | EN | DIN | ISO | BS (OLD) | USA |
| A96082 | 3.2315 | AW-6082 | AlMgSi1 | Al Si1MgMn | HE30 | AA6082 |
Properties of Chalco Aluminum 6082 electrical aluminum busbar
Chalco 6082 aluminum busbar has outstanding performance advantages in terms of conductivity and current carrying capacity. According to different busbar sizes, Chalco conductive aluminum bus bars can handle currents up to 4000A.
For specific requirements, please clickQuick Quoteto contact our customer service personnel. The following table is a reference table for the performance parameters of Chalco 6082 conductive aluminum busbar.
| Electrical and mechanical properties | |
| Tensile strength, MPa | 295 |
| Yield strength 0.2%, MPa | 240 |
| Elongation % | 8 |
| Hardness HBW | 95 |
| Tensile strength, MPa | 295 |
| Electrical conductance | min. ≥24 MS/m |
Advantage of Chalco Aluminum 6082 electrical aluminum busbar

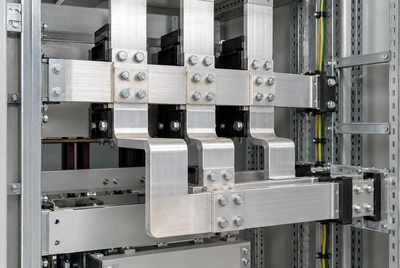

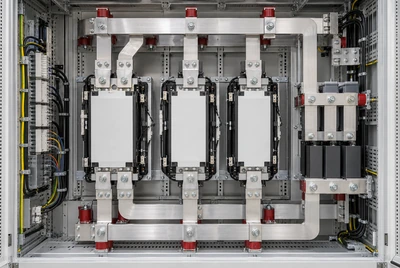

Chalco can provide complete design, including machining, forming, and brazing. Cutting, stamping, bending, drilling and other processing can be completed according to the specific requirements of customers for current capacity and bending degree.
Chalco can provide surface coating and insulation processing for conductive aluminum busbars according to customer requirements to improve product corrosion resistance, aesthetics, and avoid short circuits and other issues.
Excellent conductivity: the 6082 electrical grade aluminum busbar has good conductivity and can effectively transmit current.
High strength and rigidity: the 6082 electrical grade aluminum busbar has high strength and rigidity, and can withstand current loads and mechanical stresses. It has good structural stability and bending resistance, and is not easy to deform or break.
Good corrosion resistance: 6082 electrical grade aluminum busbar has good corrosion resistance and can be used under various environmental conditions with good durability.
Lightweight design: compared to copper busbar bars, 6082 electrical grade aluminum busbar bars have a lighter weight. Easy to install, handle, and maintain, while reducing the load on the structure.
Excellent processing performance: the 6082 electrical grade aluminum busbar is easy to process and customize, and can be processed by cutting, stamping, bending and other processes according to specific needs to meet different cabling requirements.
Application of Chalco Aluminum 6082 electrical aluminum busbar
- Urban circuit transmission and distribution system;
- Industrial automation system and industrial mechanical equipment system;
- New energy sources such as solar energy and wind power generation systems;
- Tram, electric vehicle, ship, light rail and other transportation power systems;
- Electrical systems in residential and architectural applications.
More electrical aluminum busbar products in Chalco
-
6101 EC aluminum busbar T6, T61, T63, T64, T65Containing magnesium and silicon, has high mechanical strength. Better anti creep than 1350.
Thermal stability Easy processing -
1060 EC aluminum busbar T3, T4, T5, T6, T8It is usually formed by extrusion or rolling, and has good processing performance.
High conductivity Corrosion resistance -
1350 EC aluminum busbar H14, H16, H19The minimum weight percentage is 99.5%, which is the material used for battery busbars.
Conductivity Thermal conductivity -
6060 EC aluminum busbar T4, T5, T6It can effectively transmit and distribute electricity, reducing energy loss and line power loss.
Lightweight Processability -
6061 aluminum busbar has strong conductivity and is a universal material for most processing technologies.
Smooth surface Strong moisture resistance -
6063 EC aluminum busbar T4, T5, T6, T52, T66In high-power applications, it can help effectively dissipate heat, and reduce the risk of equipment overheating.
Strong plasticity Excellent heat dissipation -
CCA bus or bimetallic conductive bus, it is the third generation of "new energy-saving conductor materials".
Conductivity Scalability Reliability
More electrical aluminum products in Chalco
- Conductive aluminum busbar
- EC Grade aluminum wire rod
- Electrical aluminum tubular bus pipe
- Aluminum plate strip foil for capacitor
- Aluminum wire for electrical application
Common sizes of Chalco aluminum electrical aluminum busbar
| Square angle aluminum bar | ||||||||||
| 2mm | 2*30 | 2*40 | 2*67 | 2*70 | 2.5* 25 | |||||
| 3mm | 3*10 | 3*15 | 3*20 | 3*25 | 3*30 | 3*40 | 3*50 | 3*60 | 3*67 | 3*75 |
| 3*110 | ||||||||||
| 4mm | 4*10 | 4*15 | 4*20 | 4*25 | 4*30 | 4*40 | 4*45 | 4*50 | 4*60 | 4.6*60 |
| 4.8*9.8 | ||||||||||
| 5mm | 5*15 | 5*20 | 5*25 | 5*30 | 5*35 | 5*40 | 5*50 | 5*60 | 5*80 | 5*100 |
| 6mm | 6*20 | 6*25 | 6*30 | 6*40 | 6*50 | 6*54 | 6*55 | 6*60 | 6*65 | 6*70 |
| 6*75 | 6*80 | 6*100 | 6*120 | 6*150 | 6*160 | |||||
| 6.3mm | 6.3*50 | 6.3*63 | 6.3*63.5 | 6.3*80 | 6.35*50.8 | 6.35*76.2 | ||||
| 7mm | 7.6*80 | 7*150 | 7*4*20*4 | |||||||
| 8mm | 8*11 | 8*30 | 8*40 | 8*50 | 8*51 | 8*60 | 8*63 | 8*63.5 | 8*65 | 8*70 |
| 8*80 | 8*90 | 8*100 | 8*120 | 8*125 | 8.8*28.6 | |||||
| 9mm | 9*170 | 9*125 | 9. 2*64 | |||||||
| 10mm | 10*20 | 10*25 | 10*30 | 10*40 | 10*45 | 10*50 | 10*60 | 10*63 | 10*65 | 10*70 |
| 10*80 | 10*90 | 10*100 | 10*110 | 10*114 | 10*120 | 10*125 | 10*140 | 10*150 | 10*160 | |
| 12mm | 12*30 | 12*40 | 12*45 | 12*50 | 12*60 | 12*70 | 12*76 | 12*80 | 12*100 | 12*120 |
| 12*125 | 12*130 | 12*140 | 12*150 | 12*160 | ||||||
| 12.5mm | 12.5*90 | 12.5*100 | 12.5*125 | 12.5*127 | 12.7*101.6 | 12.7*160 | ||||
| 13mm | 13*125 | 13*130 | 13*160 | |||||||
| 14mm | 14*100 | 14*120 | 14.5*80 | |||||||
| 15mm | 15*30 | 15*35 | 15*50 | 15*60 | 15*80 | 15*100 | 15*120 | 15*125 | 15*150 | |
| 16mm | 16*30 | 16*90 | 16*100 | 16*110 | 16*125 | 16*130 | 16*140 | 16*150 | 16*160 | |
| 20mm | 20*76 | 20*100 | 20*120 | 20*130 | ||||||
| Square bar | 19*19 | 30*45 | 15*15 | |||||||
| Round bar | Φ6 | Φ8 | Φ10 | Φ11 | Φ12 | Φ14 | Φ15 | Φ15.6 | Φ16 | Φ18 |
| Φ20 | Φ21 | Φ22 | Φ23 | Φ25 | Φ27 | Φ28 | Φ30 | Φ32 | Φ35 | |
| Φ38 | Φ40 | Φ45 | Φ50 | Φ55 | Φ60 | |||||
| Round angle aluminum bar | |||||||||
| 2mm | R2*20 | R2.5* 50 | |||||||
| 3mm | R3*30 | R3*40 | R3*50 | R3*60 | R3*80 | R3*100 | R3*120 | R3*160 | |
| 4mm | R4*25 | R4*30 | R4*35 | R4*40 | R4*50 | R4*60 | R4.1*44.1 | R4.7*151 | |
| 5mm | R5*30 | R5*35 | R5*40 | R5*45 | R5*50 | R5*60 | R5*70 | R5*75 | R5*80 |
| R5*90 | R5*100 | R5*120 | |||||||
| 6mm | R6*40 | R6*50 | R6*60 | R6*70 | R6*80 | R6*100 | R6*120 | R6*140 | R6*160 |
| R6.3*63 | R6.35*76.5 | ||||||||
| 7mm | R7*70 | ||||||||
| 8mm | R8*40 | R8*50 | R8*60 | R8*80 | R8*100 | RS*120 | |||
| 10mm | R10*20 | R10*40 | R10*50 | R10*60 | R10*75 | R10*80 | R10*100 | R10*120 | R10*125 |
| R10*150 | R10*160 | R10*170 | R10.4*25 | ||||||
| 12mm | R12*80 | R12*100 | R12*110 | R12*120 | R12*125 | R12*150 | R12*160 | ||
| 12.5mm | R12.5*80 | R12.5*125 | R12.7*90 | R12.7*127 | |||||
| 13mm | R13*120 | R13*125 | |||||||
| 14mm | R14*100 | R14*120 | R14*150 | ||||||
| 15mm | R15*100 | R15*120 | R15*130 | R15*150 | |||||
| 16mm | R16*150 | R16*160 | |||||||
| 19mm | R19.05*101.6 | R19.05*127 | |||||||
| 20mm | R20*80 | R20*120 | R20*130 | ||||||
| Special-shaped hypotenuse | *4*50 | *5*50 | *5*60 | *6*40 | *6*50 | *6*60 | *6*80 | *8*60 | *8*80 |
| *8*100 | *8*120 | *10*40 | *10*80 | *10*100 | *10*120 | *12*80 | *12*100 | *12*120 | |
| *15*120 | *20*130 | *28*60 | |||||||
