Aluminum conduit is a hollow aluminum alloy product, mostly round in shape, and due to the different materials and processing technology, it has excellent strength, corrosion resistance and processing performance. Compared with other metal conduits, such as steel pipes or titanium pipes, aluminum conduits have the advantages of light weight, high conductivity and recyclability.
In the aerospace field, aluminum ducts play a particularly prominent role. Not only can they maintain stable performance in extreme environments, but also their excellent strength-to-weight ratio helps reduce the structural weight of aircraft, thereby improving fuel efficiency and flight performance.
Chalco's aerospace aluminum conduits are popular for their diverse alloy types and high quality. Common alloys include corrosion-resistant 5A02 and 5052, high-strength 5A06, and stable performance 6061. They support customization of multiple specifications and technical protocols and are widely used in hydraulic systems, fuel delivery and other fields. They are the first choice of global aviation manufacturers.
5A02 aerospace aluminum conduits
Temper: O
Implementation standard: GJB 2379A-2015, Q/XZ-A-008-2021 technical agreement
Features: 5A02 aluminum conduit is known for its excellent corrosion resistance and medium strength, and is suitable for scenes that require long-term exposure to humid environments or salt spray conditions. Its excellent weldability and processing performance make it popular in the aerospace field.
Application: Commonly used in hydraulic pipelines, fuel delivery systems and structural support components of aircraft.
Chalco's 5A02 aerospace aluminum conduit's popular sizes are as follows:
| Product | OD(mm) | Wall(mm) | Length(mm) | OD(in) | Wall(in) | Length(in) |
| 5A02 O aluminum conduit | 6mm | 1mm | 3000mm | 0.24" | 0.04" | 118.11" |
| 5A02 O aluminum conduit | 20mm | 1mm | 3000mm | 0.79" | 0.04" | 118.11" |
| 5A02 O aluminum conduit | 30mm | 1mm | 3000mm | 1.18" | 0.04" | 118.11" |
| 5A02 O aluminum conduit | 45mm | 1mm | 3000mm | 1.77" | 0.04" | 118.11" |
| 5A02 O aluminum conduit | 55mm | 1mm | 3000mm | 2.17" | 0.04" | 118.11" |
| 5A02 O aluminum conduit | 85mm | 2mm | 3000mm | 3.35" | 0.08" | 118.11" |
| 5A02 O aluminum conduit | 95mm | 2mm | 3000mm | 3.74" | 0.08" | 118.11" |
| 5A02 O aluminum conduit | 100mm | 2mm | 3000mm | 3.94" | 0.08" | 118.11" |
5052 aerospace aluminum conduits
Temper: O
Type: Seamless aluminum tube
Implementation standard: AMS-WW-T-700/4
Features: 5052 aerospace aluminum conduit is known for its excellent corrosion resistance, moderate strength and good weldability, and is suitable for fluid delivery systems with high durability and lightweight requirements.
Applications: Aircraft fuel lines, hydraulic systems and other critical fluid transfer components.
Size range: outer diameter: 38.1mm – 203.mm (1.5 inch – 8 inch), wall thickness: 0.89mm – 5mm (0.035 inch – 0.197 inch), length: 3000mm 118.11 inch. Common size details are as follows:
| Product | OD (mm) | Wall (mm) | Length (mm) | OD (inch) | Wall (inch) | Length (inch) |
| 5052 O aluminum conduit | 38.1mm | 0.89mm | 3000mm | 1.5" | 0.035" | 118.11" |
| 5052 O aluminum conduit | 50.8mm | 1.5mm | 3000mm | 2" | 0.059" | 118.11" |
| 5052 O aluminum conduit | 63.5mm | 2mm | 3000mm | 2.5" | 0.079" | 118.11" |
| 5052 O aluminum conduit | 76.2mm | 2.5mm | 3000mm | 3" | 0.098" | 118.11" |
| 5052 O aluminum conduit | 88.9mm | 3mm | 3000mm | 3.5" | 0.118" | 118.11" |
| 5052 O aluminum conduit | 101.6mm | 3.5mm | 3000mm | 4" | 0.138" | 118.11" |
| 5052 O aluminum conduit | 114.3mm | 4mm | 3000mm | 4.5" | 0.157" | 118.11" |
| 5052 O aluminum conduit | 127mm | 4.5mm | 3000mm | 5" | 0.177" | 118.11" |
| 5052 O aluminum conduit | 139.7mm | 5mm | 3000mm | 5.5" | 0.197" | 118.11" |
| 5052 O aluminum conduit | 152.4mm | 5mm | 3000mm | 6" | 0.197" | 118.11" |
| 5052 O aluminum conduit | 165.1mm | 5mm | 3000mm | 6.5" | 0.197" | 118.11" |
| 5052 O aluminum conduit | 177.8mm | 5mm | 3000mm | 7" | 0.197" | 118.11" |
| 5052 O aluminum conduit | 190.5mm | 5mm | 3000mm | 7.5" | 0.197" | 118.11" |
| 5052 O aluminum conduit | 203.2mm | 5mm | 3000mm | 8" | 0.197" | 118.11" |
6061 aerospace aluminum conduits
Temper: T4
Implementation standards: GJB 2379A-2015, Q/XZ-A-008-2021 Technical Agreement
Features: Chalco's 6061 aerospace aluminum conduit is known for its excellent strength-to-weight ratio, good corrosion resistance and excellent processability, suitable for demanding structural applications.
Applications: Aircraft structures, fuel delivery systems, hydraulic lines, and spacecraft components that require light weight and high strength.
The following are popular sizes of 6061 t4 aerospace aluminum conduit:
| Product | OD (mm) | Wall (mm) | Length (mm) | OD (inch) | Wall (inch) | Length (inch) |
| 6061 T4 aluminum conduit | 90mm | 1mm | 3000mm | 3.54" | 0.04" | 118.11" |
| 6061 T4 aluminum conduit | 100mm | 1mm | 3000mm | 3.94" | 0.08" | 118.11" |
| 6061 T4 aluminum conduit | 110mm | 1mm | 3000mm | 4.33" | 0.12" | 118.11" |
| 6061 T4 aluminum conduit | 120mm | 1mm | 3000mm | 4.72" | 0.04" | 118.11" |
| 6061 T4 aluminum conduit | 130mm | 1mm | 3000mm | 5.12" | 0.08" | 118.11" |
| 6061 T4 aluminum conduit | 140mm | 1mm | 3000mm | 5.51" | 0.12" | 118.11" |
| 6061 T4 aluminum conduit | 150mm | 1mm | 3000mm | 5.91" | 0.04" | 118.11" |
| 6061 T4 aluminum conduit | 160mm | 2mm | 3000mm | 6.3" | 0.08" | 118.11" |
| 6061 T4 aluminum conduit | 170mm | 2mm | 3000mm | 6.69" | 0.12" | 118.11" |
| 6061 T4 aluminum conduit | 180mm | 2mm | 3000mm | 7.09" | 0.04" | 118.11" |
| 6061 T4 aluminum conduit | 200mm | 2mm | 3000mm | 7.87" | 0.08" | 118.11" |
| 6061 T4 aluminum conduit | 220mm | 3mm | 3000mm | 8.66" | 0.12" | 118.11" |
| 6061 T4 aluminum conduit | 240mm | 3mm | 3000mm | 9.45" | 0.04" | 118.11" |
5A06 large diameter aluminum conduit
Chalco's large diameter aluminum conduits are used for heavy structural support and high flow liquid transportation due to their special specifications and performance. They are designed to meet higher strength and rigidity requirements while maintaining the lightweight advantages of aluminum.
Temper: O
Features: High strength and corrosion resistance make 5A06 aluminum alloy an ideal material for manufacturing large diameter pipes. In addition, it has good welding performance and processing adaptability.
Application: Large pipes for aircraft hydraulic systems, structural supports, and other scenarios with strict requirements on diameter and strength.
Common specifications: 256mm × 2.0mm × 3000mm
Implementation standards: GJB 2379A-2015, Q/XZ-A-008-2021 technical agreement
Chalco has outstanding technical advantages in the production of large-diameter aluminum conduits. Our forward extrusion presses use cutting-edge technology to produce aluminum conduits with a maximum diameter of 700 mm, while controlling the wall thickness accuracy to 0.25 mm, demonstrating extremely high processing capabilities and quality standards.
In addition, our reverse extrusion presses and high-precision drawing equipment can produce seamless, precise large-diameter aluminum conduits. These conduits not only have excellent strength and corrosion resistance, but can also be customized according to customer needs, providing reliable support for multiple applications. Chalco's leading technology allows us to occupy an important position in the large-diameter aluminum conduit market.
Advantages of Chalco aerospace aluminum conduit
Chalco has demonstrated significant advantages in many aspects of the aerospace aluminum conduit field, from material selection to production technology, all of which meet the stringent requirements for high performance and reliability. Here are the core benefits of Chalco’s aerospace aluminum conduit:
Diverse selection of high-performance alloys
Chalco offers a variety of aluminum alloys such as 5A02, 5052, 5A06 and 6061, each optimized for different application scenarios, such as corrosion resistance, high strength or processing performance. Customers can choose the right material according to their specific needs to ensure that the product performance is perfectly matched to the actual application.
Compliance with industry standards and technical protocols
Chalco's products support a variety of international and industry standards, including GJB 2379A-2015, AMS-WW-T-700/4 and Q/XZ-A-008-2021 technical protocols. We can also adjust the production process according to the special requirements of customers to ensure that each aluminum conduit meets the needs of the project.
Advanced production equipment
Chalco is equipped with cutting-edge forward extrusion machines. We are able to produce aluminum conduits with diameters ranging from 6mm to 700mm, wall thickness accuracy as low as 0.25mm, and lengths up to 4000mm. This comprehensive range of specifications allows customers to freely customize tube sizes to meet complex aerospace application needs.
Industry recognition and wide application
Chalco's aerospace aluminum conduits have not only been highly recognized by the industry at home and abroad, but are also widely used in hydraulic systems, fuel delivery, cooling lines and structural supports due to their excellent performance. Excellent product performance makes it a reliable partner for global aviation manufacturers..
Chalco aluminum conduit cooperation areas
Aerospace

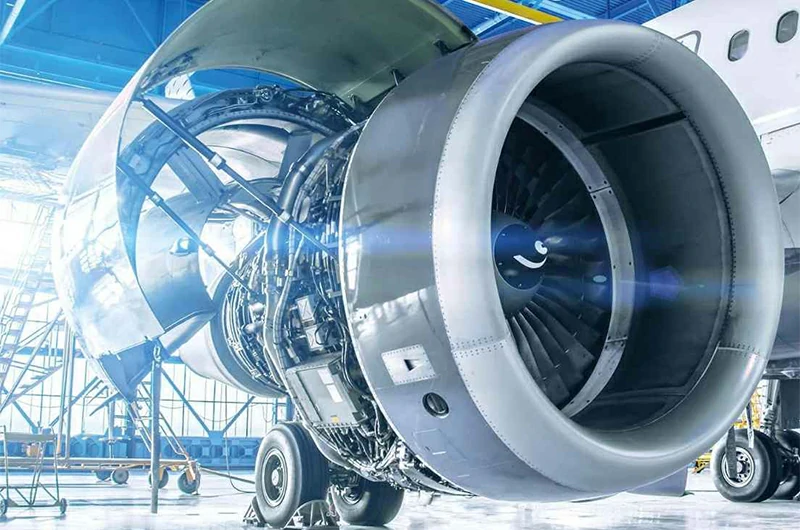

Chalco aluminum conduit is widely used in hydraulic lines, fuel delivery systems, cooling systems and structural support components in aerospace. Its products are known for their lightweight, high strength and excellent corrosion resistance, making them an ideal choice for aviation manufacturers.
Automobile manufacturing

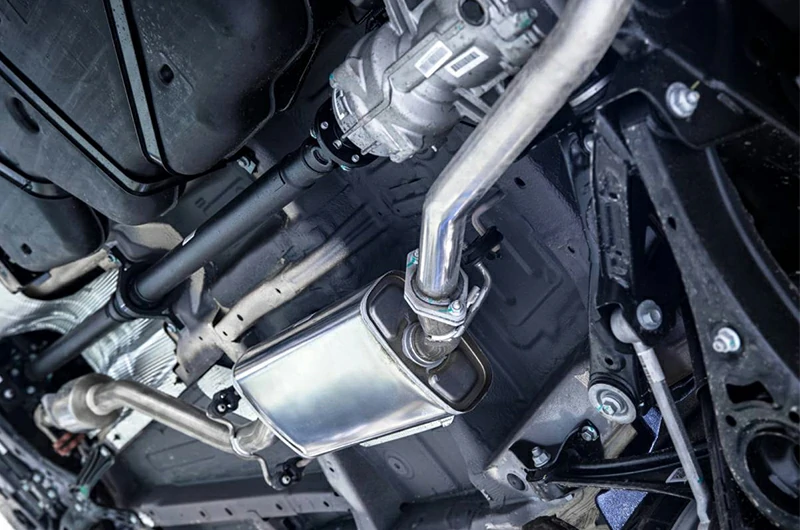

In the automotive industry, Chalco aluminum conduits are used in fuel lines, brake system lines and exhaust systems to help reduce vehicle weight and improve fuel efficiency. Its excellent processing performance and oxidation resistance provide reliable support for modern automobile design.
Marine industry

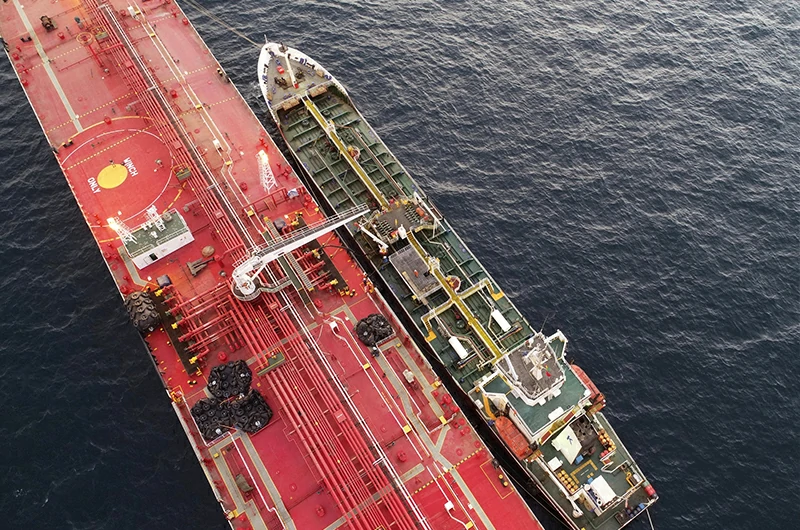

Chalco aluminum conduits are suitable for cooling lines, fuel lines and deck equipment support components. The corrosion resistance of aluminum conduits is particularly suitable for marine environments, while its high strength meets the strict requirements for safety and durability of the shipbuilding industry.
Industrial equipment manufacturing

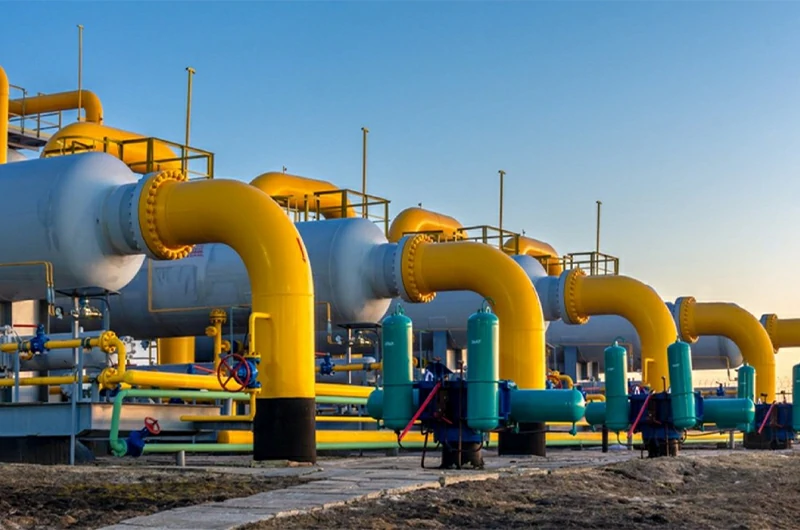

In industrial equipment manufacturing, Chalco aluminum conduits are widely used in gas pipelines, liquid delivery systems and equipment structural parts. Its durability and customizability enable it to withstand complex working conditions and high-intensity use requirements, and meet the needs of a variety of industrial environments.
What services can Chalco provide?
Customization service
Chalco provides flexible customization service, which can adjust alloys and sizes according to customer needs. For conventional sizes, existing molds are used to help customers save costs and ensure efficient delivery.
Surface treatment

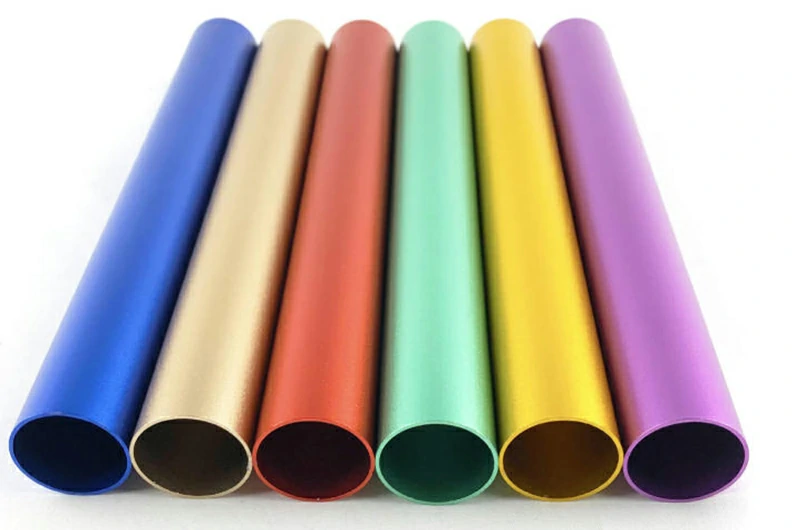

Anodizing: Improves the corrosion resistance and wear resistance of aluminum conduits, and provides a variety of color options.
Spraying: Provides an additional protective layer for aluminum conduits, increasing the gloss and weather resistance of the appearance.
Passivation treatment: Enhances the oxidation resistance of aluminum conduits and prevents surface corrosion.
Electroplating: Improves the surface hardness and corrosion resistance of aluminum conduits, while improving aesthetics.
Precision tolerance control
With advanced forward extrusion, reverse extrusion and drawing equipment, Chalco is able to achieve high-precision production to ensure that the dimensional tolerance and wall thickness accuracy meet customer requirements.
The wall thickness accuracy can reach ±0.05mm, and the diameter tolerance can be controlled at ±0.1mm, meeting the stringent standards of demanding industries.
Provide quality inspection report
Provide detailed product quality inspection report, including chemical composition, mechanical properties, dimensional tolerance and other parameters to ensure that product quality meets international standards.
