Aluminum Tooling & Jig Plate

Aluminum plates used for tooling are typically made from thick or cast ultra-thick aluminum slabs with a fine and uniform grain structure. Known for their excellent thickness tolerance and outstanding dimensional stability, these plates are ideal for precision machining applications. They offer excellent performance in welding, anodizing, and corrosion resistance, making them a preferred choice for mold bases, jigs, fixtures, and CNC platforms.Welcome contact

Specification and classification of Chalco aluminum tooling & jig products

In mold making and CNC machining, aluminum is favored for its excellent machinability, thermal stability, and lightweight strength. Depending on the processing depth and structural demands, engineers typically rely on two forms of aluminum materials: tooling plates for surface precision and flatness, and tooling blocks for thicker sections and deep cavity milling.

Chalco offers both product types with high dimensional stability and stress-relieved performance, ready to meet the needs of precision tools, fixtures, and industrial automation bases.

Typical Alloys: 2024, 5052, 5083, 5086, 6061, 6082, 7075; Go to [Technical Specifications and Inventory Table]

Tempers: H111, H112, H116, T4, T6, T651, F

Thickness Range: Tooling Plate: 6–150 mm (custom up to 250 mm);Tooling Block: 50–600 mm (or thicker on request)

Standard Width: 1000–2500 mm

Standard Length: 2000–6000 mm

Flatness Tolerance: 6–16 mm: ≤ 0.15–0.3 mm/m;>16 mm: ≤ 0.1 mm/m or ±0.005" (above 5/8")

Thickness Tolerance: ±0.015" (0.25"–4.00") or ±0.07 mm typical

Surface Finish: Precision milled on both sides, Ra ≤ 25 µin

Standards: Conforms to ASTM B209, EN 485, ISO 9001

Chalco aluminum tooling jig plate

To meet different machining and structural requirements, Chalco offers a range of aluminum tooling plates in various types, each optimized for specific applications and performance needs.Quick Quote

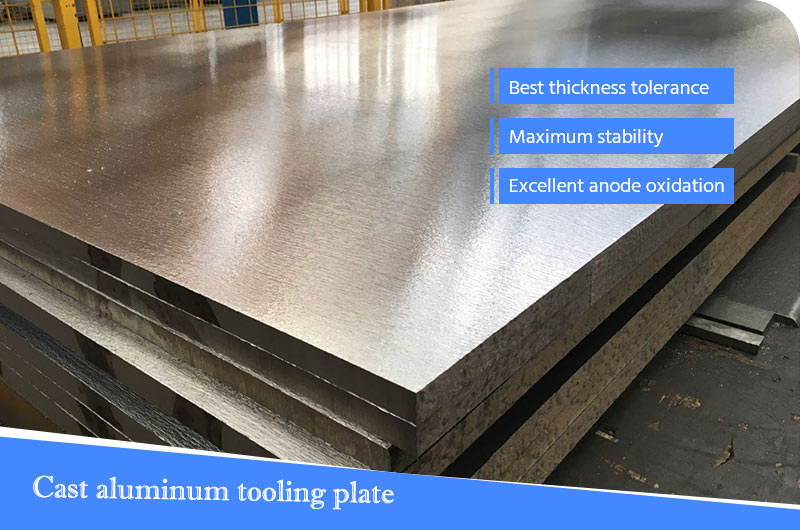

• Cast aluminum tooling plate (6061 cast, 6082, 7075, 7475, 7050, 5083...)

  Produced by continuous casting, this plate is fully stress-relieved and precision-milled on both sides, offering excellent flatness and dimensional stability.

  Comparable products: MIC-6®, ATP-5®, Alca 5®, CT&J Plate

  Applications: CNC bases, inspection fixtures, precision jigs, mold plates

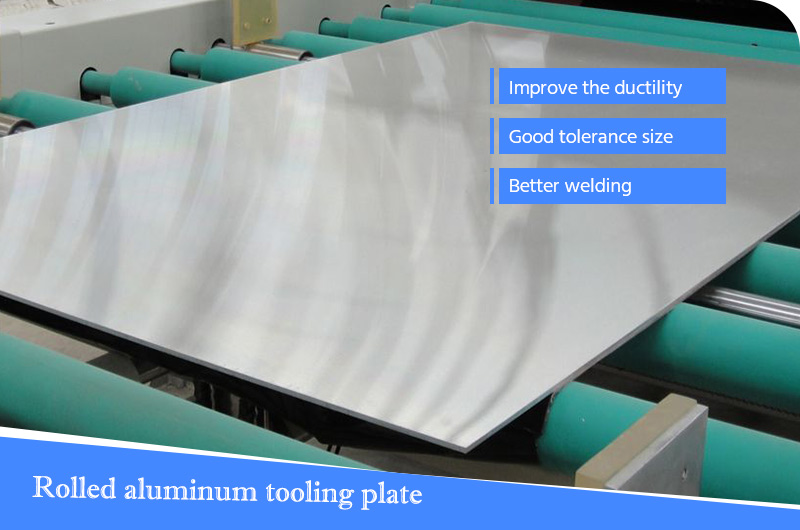

• Rolled aluminum tooling plate (5083, 6061 T651...)

  Manufactured by hot or cold rolling and heat treatment, then surface-machined to tight tolerances. Offers higher mechanical strength and better formability than cast plate.

  Typical thickness: up to 60 mm

  Applications: structural jigs, forming dies, welded assemblies, industrial platforms

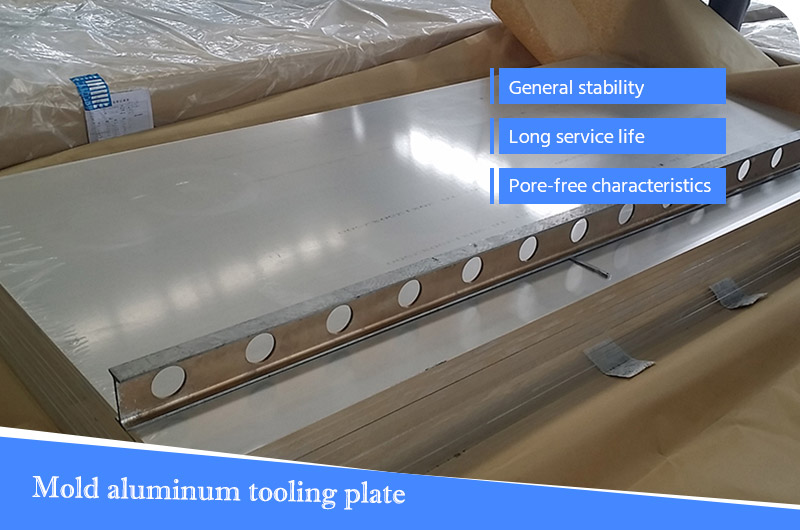

• Mold-grade precision plate

  A high-performance rolled tooling plate with improved internal integrity and tighter dimensional control, designed for highly machined mold components.

  Typical thickness: 100 mm – 250 mm (up to 400 mm)

  Applications: injection mold cavities, deep-machined bases, precision dies

• Pre-machined tooling plate

  Supplied with pre-milled surfaces, tight flatness and parallelism, this plate is CNC-ready and minimizes setup time.

  Applications: automation fixtures, machine bases, modular platforms

• Oversized / large format tooling plate

  Available in extra-wide widths and non-standard lengths, this plate meets demands for full-size equipment bases and large-scale assembly platforms.

  Typical width: up to 1500 mm or more

  Applications: vacuum tables, large jigs, aerospace tooling plates

• Hybrid composite tooling plate

  Lightweight composite plate with an aluminum foam core and solid face layers, used in special applications requiring both rigidity and weight reduction.

  Applications: Available upon request for specific lightweight tooling or aerospace needs

Chalco aluminum tooling jig block

Chalco offers aluminum tooling blocks in various forms, engineered for deep machining, large-section parts, and high-strength tooling applications.Quick Quote

• Cast aluminum tooling block (6061 cast, 6082, 7075, 7475, 7050)

  Cut from cast aluminum ingots and stress-relieved, this block offers excellent dimensional stability and is well-suited for large, deep-machined parts.

  Available sizes: up to 2000 × 1000 × 600 mm; custom sizes and rough-sawn blocks can be supplied upon request.

  Applications: deep cavity mold bases, thick-section CNC parts, machine frames

• Forged aluminum tooling block (5083, 6061)

  Produced by forging to achieve higher strength and finer grain structure, ideal for structural tooling that requires high mechanical performance.

  Available sizes: up to 1500 × 800 × 500 mm depending on alloy and forging configuration.

  Applications: heavy-duty tooling supports, stress-critical mold structures, aerospace tooling

• Pre-machined / precision tooling block

  Delivered with tight tolerance surfaces and reduced internal stress, ready for direct CNC processing without additional flattening.

  Available sizes: standard dimensions include 300 × 300 × 50 mm up to 1200 × 800 × 300 mm; custom cut-to-size service supported.

  Applications: automation base blocks, modular assembly platforms, precision fixtures

Chalco Tooling Plate vs. MIC-6®, ATP-5™, Alca 5™ — a smarter alternative

The table below provides a detailed comparison between Chalco cast tooling plate and globally recognized brands, covering technical specifications and real-world advantages.

While leading global brands like MIC-6®, Alca 5™, and ATP-5™ have established reputations, Chalco cast tooling plates demonstrate comparable — and in many cases superior — performance across critical dimensions such as flatness, machinability, surface finish, and dimensional stability. What truly sets Chalco apart is its ability to combine technical excellence with production efficiency, faster delivery, and localized service for global customers.

• Fine-grain aluminum alloy with excellent internal stability
• Fully stress-relieved and CNC-ready for deep machining
• Maintains dimensional accuracy even after extensive processing
• Superior flatness (≤0.005"/ft), tight thickness tolerance (±0.07 mm)
• Excellent anodizing and corrosion resistance
• Available in a wide range of alloys and tempers for versatile applications
• Both sides protected with PVC film for safe transportation
• Backed by Chalco's advanced manufacturing platform and full supply chain integration, short lead time, competitive pricing

Ready to upgrade your tooling performance with better value and faster delivery? Contact Chalco today for expert guidance and a competitive quote. Quick Quote

Custom processing capabilities & cut-to-size services

To meet the specific requirements of CNC machining, mold making, and automated assembly systems, Chalco provides not only high-quality tooling plates and blocks, but also a full range of processing and customization services.

We offer flexible machining capabilities and in-house technical support to help you select the right alloy, dimensions, and surface condition for your project.

• Cut-to-size service for custom length, width, and thickness
• Rough-sawn aluminum blocks for large-section machining
• Double-sided precision milling with flatness and parallelism control
• CNC pre-machining, drilling, and edge trimming based on drawings
• Surface treatment support: protective film, anodizing-ready, deburring
• Custom packaging solutions for oversized or heavy-duty components

Chalco also supports project-based cooperation and OEM machining for specialized tools, fixtures, and structural elements. Quick Quote

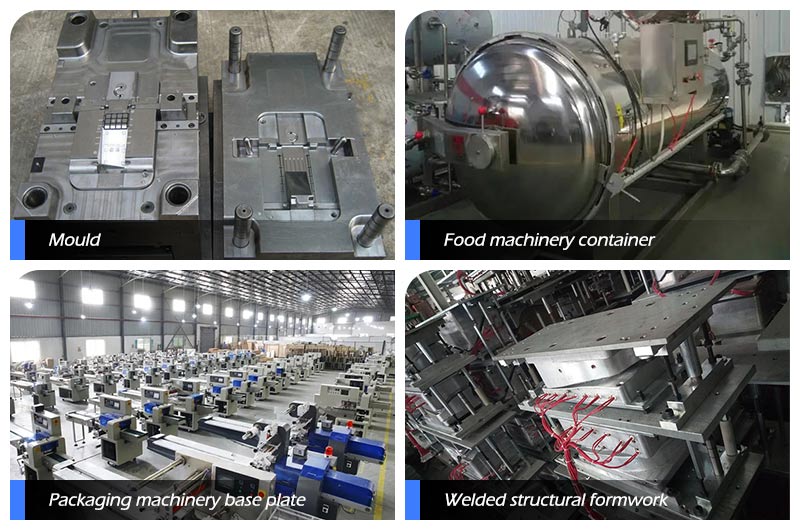

Where Chalco tooling plate & block are used

Chalco aluminum tooling plates and blocks are widely used across industries that demand high precision, stability, and machining efficiency. From aerospace to packaging, our materials support a broad range of components and structural parts that require excellent flatness, dimensional consistency, and stress-free performance.

Aerospace & Precision Engineering: Jigs, fixtures, CNC-machined platforms, and structural die components used in flight tools and measurement systems.

Plastic & Rubber Molding Industry: Blow forming dies, injection mold bases, hot forming and rotary molds for polymer and elastomer processing.

Metal Forming & Stamping: Mold support plates, base plates, press plates for sheet metal tooling and heavy-duty forming applications.

Electronics & Automation: Mounting plates, vacuum plates, high-precision inspection platforms, and electronic component bases.

Food & Packaging Machinery: Machine base frames, packaging equipment plates, sanitary-grade structural parts, and control enclosures.

Medical Equipment: Non-magnetic fixture plates, tool mounting bases, and CNC-machined structural elements for cleanroom environments.

High-temperature or Cryogenic Applications: Mold blocks and structural parts for synthetic rubber molding, refrigeration engineering, and thermal insulation.

Woodworking & CNC Router Systems: Precision-milled aluminum router plates for router tables, modular fixtures, and lightweight machine bases.

General Industrial Tooling: Clamps, fixtures, welded structural formworks, and high-stability modular bases for automated production lines.

FAQs: Buying and using Chalco aluminum tooling & jig plate block

Q1: Are Chalco aluminum tooling plates compatible with anodizing?

A1: Yes, our 6061, 5083, and other alloys offer excellent anodizing performance, including both standard and hard anodizing. Please let us know your surface treatment needs when placing an order.

Q2: Can I request cut-to-size or pre-machining services based on my drawing?

A2: Absolutely. Chalco supports custom dimensions, rough sawn cuts, precision milling, CNC pre-machining, drilling, chamfering, and mounting hole preparation according to your technical requirements.

Q3: How do Chalco tooling plates compare with MIC-6®, ATP-5™, and similar brands?

A3: Our cast plates use high-quality 6061 or 5083 alloys, offering comparable flatness, dimensional stability, and machinability—while providing faster lead times, broader alloy selection, and competitive pricing.

Q4: Do you support both metric and imperial sizes? Are your products suitable for export projects?

A4: Yes. We offer both metric (mm) and imperial (inch) specifications and provide export-grade packaging. Our customers are located in North America, Europe, Southeast Asia, and other global regions.

Q5: Are stock sizes available? What is your usual lead time?

A5: Standard thicknesses and alloys are in stock and typically ship within 3–7 days. Customized sizes or machining projects may require 7–15 days depending on complexity and volume.

Q6: What machining processes are suitable for your aluminum tooling plates? Are they easy to weld or finish?

A6: Our plates are well-suited for CNC machining, drilling, tapping, bending, and other operations. Most alloys support MIG/TIG welding and offer excellent anodizing and polishing properties.
