Aluminum T-slot

T-slot aluminum profiles are a versatile modular structural material widely used to build trolleys, shelves, barriers, workstations and other structural frames. Due to the T-slot design, it can be quickly assembled and disassembled without welding, which is convenient for expansion or reconfiguration according to facility needs. The grooves of these extruded aluminum profiles can accommodate a variety of compatible connectors and fasteners, so that profiles, hinges, panels, handles and other components can be flexibly combined to meet the personalized design needs of different projects.

As a leading global aluminum profile supplier, Chalco not only provides high-quality T-slot profiles, but also has excellent extrusion capabilities, precise processing services and rich accessories support, providing a one-stop solution for your project.

Alloy: 6063-T5, 6061-T6 and other high-strength aluminum alloys.

Cross-sectional dimensions: Common dimensions are 20×20 mm, 30×30 mm, 40×40 mm, 45×45 mm, 60×60 mm, etc. Multi-groove profiles can enable more complex structures to be built.

Standard length: 3 m, 6 m, custom lengths available, tolerance ±0.2 mm.

Slot width: Common T-slot widths include 6 mm, 8 mm, 10 mm, etc., to accommodate different fasteners.

Wall thickness: Wall thickness is usually between 1.2 mm - 2.0 mm, depending on the load-bearing requirements.

Surface treatment: anodizing, sandblasting, brushing, powder coating and other options.

Processing capabilities: Provide precise cutting, drilling, tapping and CNC processing to ensure seamless assembly of profiles.

Product type:

Basic dimensions of T-slot aluminum profiles

T-slot aluminum profiles are widely used in various industrial and automation projects due to their excellent adaptability and flexibility. Choosing the right size is the key to ensuring a stable structure and perfect functionality. Chalco offers a variety of conventional sizes of T-slot aluminum profiles, including 20cm, 30cm, 40cm, 45mm, 60mm, 80mm and other sizes to meet various needs from light brackets to heavy frames. [Contact us]

Fractional standard t-slot profile

10 series (based on 1*1'' profile)

15 series (based on 1.5*1.5'' profile)

Metric standard t-slot profile

20 Series (Based on 20*20mm profile)

25 Series (Based on 25*25mm profile)

30 Series (Based on 30*30mm profile)

40 Series (Based on 40*40m profile)

45 Series (Based on 45*45 profile)

50 Series (Based on 50*50m profile)

60 Series (Based on 60*60m profile)

80 Series (Based on 80*80m profile)

Standard Heavy profile t-slot

Standard profile t-slot

Standard Light profile t-slot

T-slot profiles full range display: from single slot to multi-slot, facilitating customized design

In the frame design of modern industrial and automation equipment, T-slot profiles have become an ideal choice for a wide range of applications with their excellent flexibility, stability and customizability. Chalco offers a full range of T-slot profiles, from single slot to multi-slot, including three-slot and four-slot configurations, to meet various structural construction needs. Quick Quote

Single T-slot products

Regular size

• 20×20 mm, 30×30 mm, 40×40 mm, 45×45 mm, 50×50 mm
• Length: 3 meters, 6 meters, can be customized according to needs

Features

• Simple structure: Only one slot on one side, light weight and easy installation.
• Flexible fixing: Suitable for light frames or one-way fixing.
• Cost advantage: The price is relatively low, suitable for economical projects.

Common Applications

• Display racks, partition frames: structural frames used for light load-bearing.
• Electronic equipment bracket: small equipment, display screens, control panels fixed.
• Laboratory stand: a fixed stand for precision instruments.

Single with 1 Side Slot

Single with 2 Corner Side Slots

Single with 2 Corner Side Slots

Single with 3 Adjacent Side Slots

Single with 4 Full-Perimeter Slots

Dual t-slot products

Regular Size:

• 30×30 mm, 40×40 mm, 45×45 mm, 50×50 mm
• Length: 3 meters, 6 meters in general, can be cut according to customer needs

Features:

• Multi-directional connections: Multiple side grooves enable complex multi-sided connections.
• Strong stability: Suitable for structures that bear larger loads.
• High flexibility: Suitable for multi-functional assembly scenarios, with more stable connections.

Common Applications

• Industrial frames, mechanical equipment supports: frame construction for most automation equipment.
• Workbenches, production line frames: For heavy-duty or multi-functional platforms.
• Safety guardrails and partition barriers: provide safety barriers for industrial production.

Double with 2 Single-Side Slots

Double with 2 Opposite-Side Slots

Double with 3 Corner-Side Slots

Double with 4 Adjacent-Side Slots

Double with 6 Full-Perimeter Slots

Triple Slot & Quad Slot

Regular size

• Three-slot T-slot profile: 45×45 mm, 60×60 mm, 80×80 mm
• Four-slot T-slot profile: 45×45 mm, 60×60 mm, 80×80 mm, 90×90 mm
• Length: Regular 3 meters, 6 meters, customizable length

Features

• Multi-faceted compatibility: Whether it is a three-slot or four-slot profile, multiple slots provide flexible connection options and support multi-dimensional frame construction.
• Enhanced load-bearing capacity: Suitable for complex structures and heavy-load applications, ensuring the stability and strength of the frame.
• Ultra-high stability: Four-groove profiles are particularly suitable for large structures, providing extremely strong support and load-bearing capacity.
• Wide adaptability: compatible with a variety of connectors and accessories, making the framework construction more flexible and changeable.

Common Applications

• Automation equipment framework: widely used in the framework construction of robot devices, transmission systems and automated production lines.
• Heavy-duty plant supports: Support structures for large workbenches, assembly lines and high-load equipment.
• Safety equipment protection frame: Provides reliable protection bracket for high-intensity application scenarios to ensure equipment safety.
• Logistics transportation system framework: supports complex transportation devices and ensures stable operation of the system.

Triple with 8 Full-Perimeter Slots

Quad with 8 Full-Perimeter Slots

Dual-Quad with 12 Full-Perimeter Slots

Structural T-slot products

In addition to the conventional single-slot, double-slot, triple-slot, and quad-slot T-slot profiles, Chalco also provides more flexible and functional Structural T-slot profiles to meet more complex frame construction needs. This series of products not only maintains the modular advantages of the T-slot system, but also makes the frame structure more stable and reliable through specific angle design and functional optimization. It is an ideal choice for industrial automation, equipment support, and special structural applications.

Angled & Radius t-slot profiles

Features:

• Multi-angle design: including regular angles such as 45° and 90°, which can quickly form a stable corner frame.
• Rounded edge protection: Radius profiles can form soft corner transitions to avoid sharp corners and are suitable for equipment protection.
• Strong compatibility: Can be used in combination with Chalco's standard profiles, perfectly matching various connectors and accessories.
• Corrosion resistance and high strength: Made of high-quality aluminum alloy, anodized to ensure long service life, wear resistance and corrosion resistance.

Common applications:

• Equipment corner guards and shield frames: Protect operators from contact with sharp corners.
• Automated assembly line equipment: Improve equipment stability while enhancing appearance quality.

1.5*1.5 Radius t-slot Profile

30*30 Radius t-slot Profile

40*40 Radius t-slot Profile

80*20

Angled t-slot Profile

Quarter round profile

Specialty profiles

Features

• Multifunctional hole and slot design: It has a variety of special structures such as single-sided slot, double-sided slot, special-shaped slot, etc., which are suitable for different connection methods.
• Modular compatibility: Can be seamlessly connected with standard T-slot profiles to achieve multi-dimensional structural combination.
• Combination of lightweight and high load: Optimized profile cross-section design to meet high-strength support while reducing the weight of the frame.
• Special function applications: Suitable for industrial automation equipment and modular frameworks that require flexible adjustment or customization.

Common Applications

• Precision equipment frame: Suitable for scenarios that require high-precision installation, such as CNC processing equipment and automated production lines.
• Heavy-duty support and load-bearing system: It can meet the load-bearing requirements of high-load equipment and has flexible combination.
• Decorative frames and display systems: Customized display systems or protective structures can be built according to different needs.

Half-Single with 1 Single-Side Slot

Half-Double with 2 Single-Side Slots

Special Mounting Profile

Why choose Chalco t-slot profile

Among many T-slot profile suppliers, Chalco has become the first choice trusted by customers due to its excellent manufacturing capabilities, flexible customization services and comprehensive supporting support. Whether it is standard profiles or customized products, we can provide you with high-quality and efficient one-stop solutions.

1. Precise mold making to meet personalized needs

Chalco has strong mold-making capabilities and can design and produce unique T-slot profiles according to the specific needs of customers. We have advanced mold processing technology and an experienced engineering team to ensure that each profile can accurately meet the special requirements of customers. Whether it is a special shape or a unique slot design, we can easily handle it.

2. Strong extrusion production capacity - quick response to market demand

With advanced extrusion technology and equipment, Chalco is able to efficiently produce T-slot profiles of various specifications, ensuring that we can respond quickly to your needs. Whether it is small batch customization or large-scale production, we can deliver on time according to the project schedule and ensure high quality standards to help your project proceed smoothly.

3. Rich accessories support - one-stop shopping experience

Chalco not only provides high-quality T-slot profiles, but we also prepare a rich selection of accessories for you, including various connectors, bolts, angle pieces, etc. By providing you with a full range of accessory support, we help you easily complete the frame construction, simplify the procurement process, and save your time and cost.

4. Complete additional processing - improve product functionality

In addition to standard profiles, Chalco also provides a wealth of additional processing services, such as cutting, drilling, milling and surface treatment. These processing services can help you further enhance the functionality and aesthetics of T-slot profiles, making them more applicable and durable while meeting basic structural requirements, perfectly meeting your different engineering needs.

Size cutting

Our precision cutting service ensures your aluminium profiles are cut to your required length with an accuracy of +/- 0.2mm. This ensures a seamless fit for your project requirements.

Diagonal cutting

Diagonal cuts up to +/- 60 degrees can be performed, giving you the flexibility to create unique shapes and configurations for your projects.

Drilling Services

High-precision drilling service, with hole position accuracy up to +/- 0.1 mm, ensures that the reserved space and accessories match seamlessly. Satisfy standard hole positions and complex customization.

Silver t-slot

Black anodized T-slot

Yellow anodized t-slot

Integrated solutions with T-slot framing system

Chalco provides a wide range of T-slot profiles and accessories, covering multiple industries. Whether you are in manufacturing, machinery, automation, engineering construction or other industries, we can meet your needs for T-slot structures.

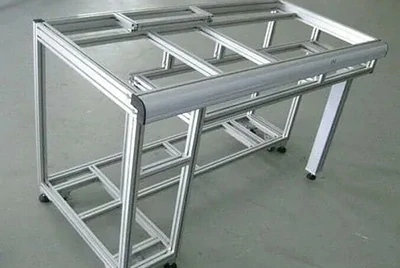

T slot aluminum table frame

Larger T-slot profiles, such as 40 series or larger, are usually selected to ensure that the table frame has sufficient stability and load-bearing capacity.

Contact us now

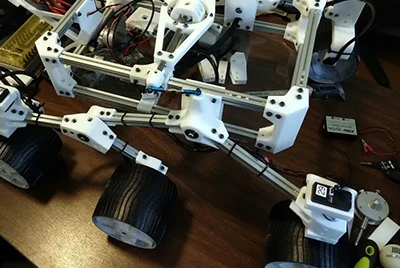

Extruded aluminum t slot 3d printer

Smaller size T-slot profiles, such as 20 series or 30 series, are often used in printer frames because they are lightweight and easy to assemble.

Contact us now

T slot aluminum for Window frames

Medium-sized T-slot profiles, such as the 30 series, are usually selected to balance structural stability and aesthetic appearance.

Contact us now

T slot aluminum for Workstation, test station, workbench

Choose a larger T-slot profile, such as 40 series or larger, to ensure the table has adequate strength and stability.

Contact us now

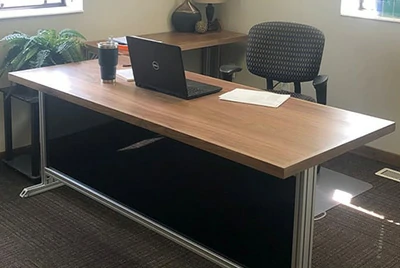

T slot aluminum for Office and workshop furniture

Choose the appropriate size of T-slot profile according to the needs of specific furniture. Common choices include sizes between 20 series and 40 series.

Contact us now

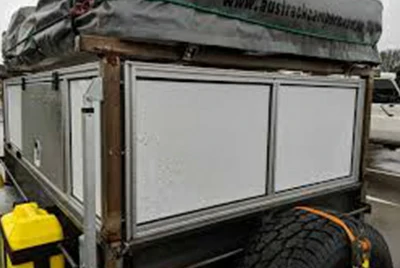

T -slot aluminum framing for trailers

Larger size T-slot profiles, such as 40 series or larger, are usually selected to ensure the trailer structure is stable and durable.

Contact us now

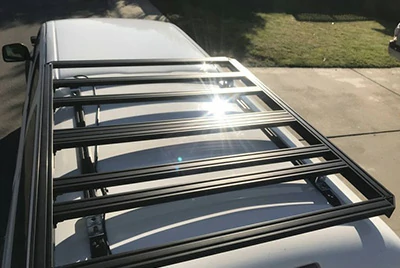

T slot aluminum roof rack

Generally, moderately sized T-slot profiles, such as the 30 series, are selected to balance lightweight and load-bearing capacity.

Contact us now

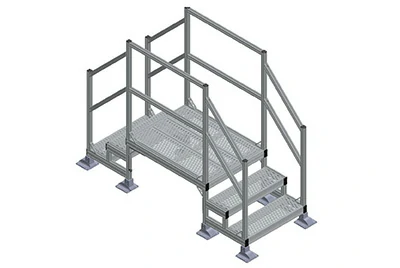

T-slot for ladder

Larger T-slot profiles, such as the 40 series, are usually selected to ensure that the ladder structure is strong and reliable.

Contact us now

T-slot product performance parameter table

Not all extruded profiles are created equal. Two profiles may have the same external dimensions (e.g. 45 x 45 mm) but have very different stiffnesses depending on their cross-sectional area and area moment of inertia.

• The cross-sectional area of a profile refers to the area formed by the cross section of the material perpendicular to its length. The cross-sectional area determines the mass and load-bearing capacity of the profile. A larger cross-sectional area usually means a greater mass and a higher load-bearing capacity.
• The area moment of inertia describes the resistance of a material cross section to bending and torsion. The larger the area moment of inertia, the stronger the resistance of the profile to bending and torsion, and the higher the rigidity.

In engineering design, engineers need to consider these indicators comprehensively to select the profile that best suits a specific application scenario. The following table takes the 45*45 profile as an example to introduce the key parameters of t-slots with different cross sections. For other specifications, dimensions, performance parameters, please contact.

Profile Dimensions (mm)	45 x 45	45 x 45	45 x 45	45 x 45	45 x 45
Material (aluminum)	6063-T5	6063-T5	6005-T5	6560-T6	6105-T5
Profile area (mm2)	571	737	761	563	757
Area moment of inertia (mm4)	109, 635	141, 720	162, 325	107, 780	139, 310
Torsional constant (mm4)	19, 836	39, 719	31, 851	19, 394	31, 042
Weight per meter (kg)	1.55	2.03	2.06	1.63	2.05
(Area moment of inertia) / (Surface Area) (mm2)	192	192	213	191	184
Max deflection (500mm cantilever) at 1500 N force (mm)	8.25	6.3	5.58	8.28	6.5
Stress (500mm cantilever) at 1500 N force (MPa)	153.48	117.11	103.96	156.57	121.05
Torsional displacement (1m length) at 50 Nm torque (degrees)	5.55	2.77	3.46	5.68	3.55

Chalco T-slot aluminum profile technical support

To ensure that customers have a seamless and smooth assembly process when using Chalco T-slot aluminum profiles, we provide comprehensive technical support and professional services, covering every link from product selection to project installation.

Product selection guide

Recommend appropriate T-slot profile specifications, slot width and connection methods based on project requirements.

Provide technical parameters such as profile load bearing, static analysis, etc. to help customers make the best design.

Installation and assembly support

Detailed assembly manuals and installation guides are provided to ensure quick and accurate assembly of components.

For complex structural projects, we provide customized CAD design and assembly solutions.

Processing and accessories matching suggestions

Provide technical support such as cutting, drilling, tapping, and CNC processing according to project requirements.

Recommend compatible connectors, fasteners, sliders, hinges and other accessories to ensure the tightness and stability of the profile combination.

After-sales technical support

Resolve technical problems encountered during use in a timely manner and provide remote or on-site technical support.

Provide long-term technical tracking services for profile maintenance, disassembly, assembly and adjustment, etc.

With the professional technical support provided by Chalco, customers can greatly reduce the difficulty of installation, improve assembly efficiency, and ensure the safety and stability of the project.

FAQs on purchasing T-slot profiles

How to choose the right T-slot aluminum profile?

When selecting T-slot profiles, a comprehensive evaluation is required based on factors such as frame load-bearing capacity, use environment, profile size, slot width, etc. Common specifications include 20 series, 30 series, 40 series, 45 series, etc. Different series are suitable for different application scenarios.

What surface treatments are available for Chalco T-slot aluminum profiles?

We provide a variety of surface treatments such as anodizing, spraying, brushing, polishing, etc. Different finishing effects can be selected according to project requirements to improve corrosion resistance, aesthetics and service life.

Can the size of T-slot profiles be customized?

Yes, we can provide profiles with customized length, slot width, hole position or special surface treatment according to your drawings or needs to ensure that they meet the special requirements of the project.

What accessories are needed for T-slot profile connections?

Common accessories include corner fittings, connectors, bolts, sliders, hinges, panel fixings, etc. The connection methods and fasteners used in different application scenarios are different, and can be selected according to structural requirements.

What processing services can Chalco T-slot profiles provide?

We provide services such as precision cutting (tolerance ±0.2mm), drilling, tapping, CNC machining, angle cutting (±60°), etc. to ensure the precise matching of profiles and accessories to meet the needs of complex structures.

How to get an accurate quote?

To get an accurate quote, please provide the required profile specifications, quantity and other special requirements . Our team will provide you with a customized quote as soon as possible.

What is the lead time for Chalco T-slot profiles?

We have extensive inventory and efficient production capabilities to ensure that conventional models can be shipped quickly. The lead time for customized products will vary depending on the complexity of the order, and we will clarify the delivery schedule with you.

How to ensure installation accuracy of T-slot profiles?

Detailed installation manual and assembly instructions are provided to ensure customers can complete the installation easily.

Complex projects support CAD design optimization and assembly technology guidance to improve assembly accuracy and stability.

Are T-slot profiles suitable for highly loaded structures?

Chalco's T-slot profiles have high strength and excellent load-bearing capacity, making them ideal for high-load structures such as heavy-duty frames, automation equipment, and workbench supports.

How to calculate the load-bearing capacity of T-slot profiles?

The load-bearing capacity of T-slot profiles depends on the profile cross-section, wall thickness, slot width and frame design. We can provide load calculations and strength analyses to help select the most suitable profile specifications for your project.

Is there fast shipping?

Yes, we have sufficient stock of standard T-slot profiles for quick delivery. We can also produce and deliver customized products within a short lead time.

What after-sales services are available?

• Technical support: Provide long-term product use, maintenance, and adjustment support.
• Replacement guarantee: Provide timely replacement or reissue service for products with quality problems.

Start your custom project and build a stronger structural framework with Chalco!

Whether it is automation equipment, workstations, or industrial racks, Chalco's T-slot aluminum profiles can provide strong support and flexibility for your project. We not only provide standard aluminum profiles, but also customize them according to your specific needs.

Contact us for more detailed product information, customized services or to start your project immediately!
